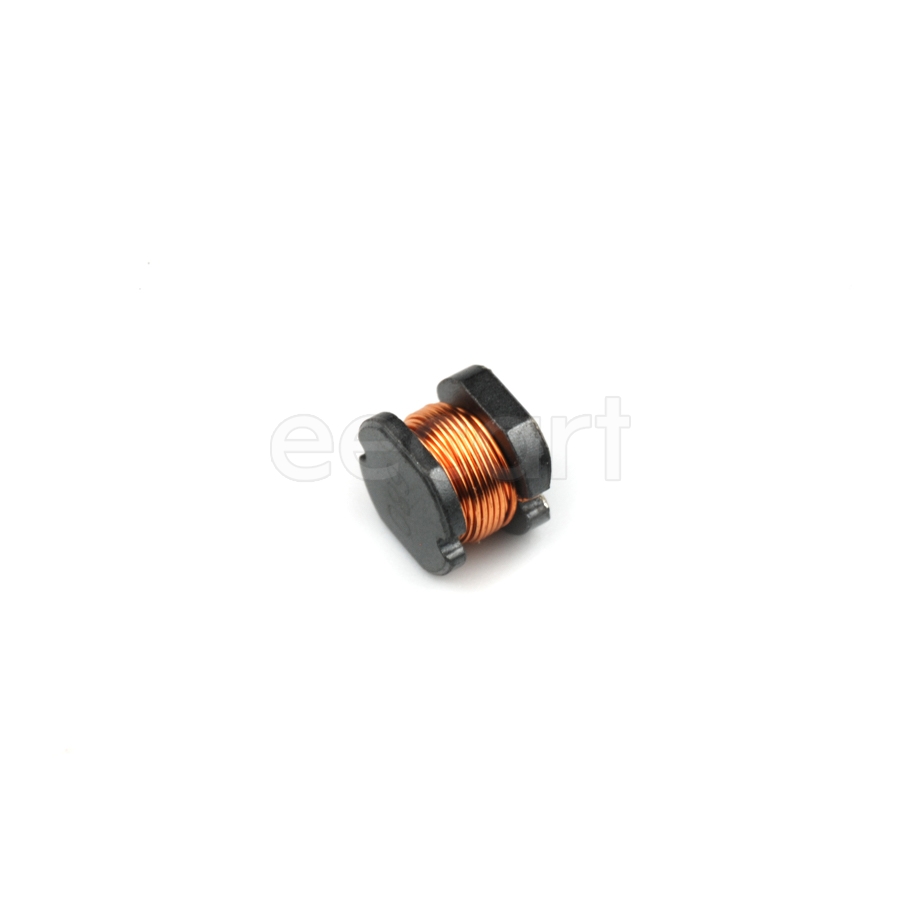

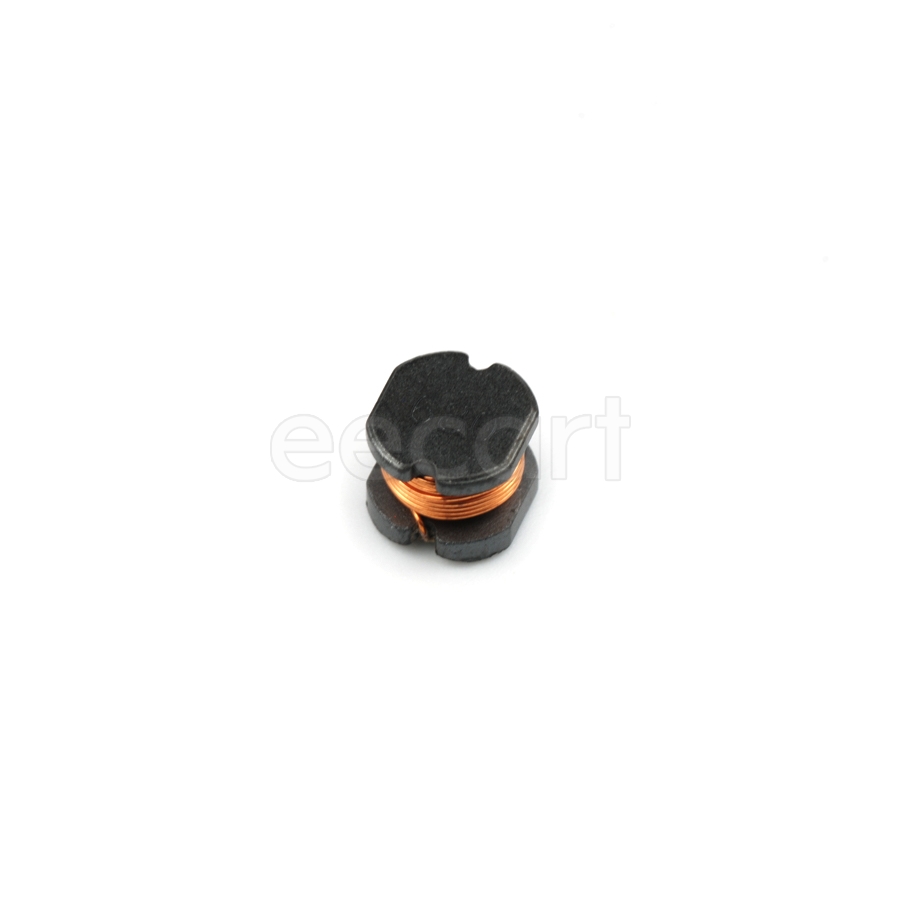

84103C
Manufacturer:
Murata
Mfr.Part #:
84103C
Datasheet:
Description:
Fixed Inductors 4.50mmL×3.30mmW×2.90mmH SMD/SMT 10 µH 10 % 950 mA 240 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 2.9 mm |
| Length | 4.4958 mm |
| Width | 3.302 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 2.6 mm |
| Packaging | Reel |
| Depth | 3.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | Wirewound |
| Current Rating | 950 mA |
| DC Resistance (DCR) | 240 mΩ |
| Shielding | Unshielded |
| Inductance | 10 µH |
| inductance tolerance | 10 % |
| Max DC Current | 950 mA |
| Schedule B | 8504500000 |
Stock: 3385
Distributors
pcbx
pcbxUnit Price$0.33138
Ext.Price$0.33138
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33138 | $0.33138 |
| 10 | $0.30845 | $3.08450 |
| 25 | $0.27654 | $6.91350 |
| 50 | $0.23401 | $11.70050 |
| 100 | $0.20209 | $20.20900 |
| 300 | $0.17577 | $52.73100 |
| 500 | $0.15288 | $76.44000 |
| 1000 | $0.13296 | $132.96000 |
