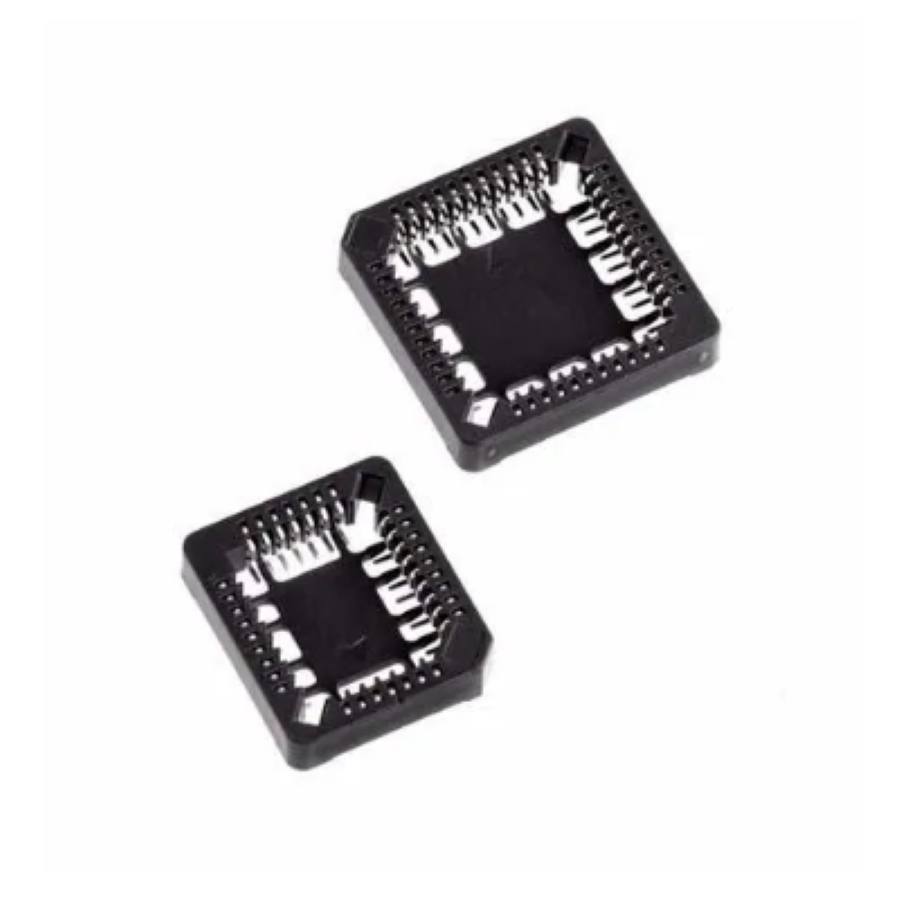

8444-21B1-RK-TP
Manufacturer:
3M
Mfr.Part #:
8444-21B1-RK-TP
Datasheet:
Description:
IC and Component Sockets SMD/SMT Socket Number of Positions:44 Number of Rows:4 Pitch:1.27 mm Row Spacing:12.7 mm
| Parameter | Value |
|---|---|
| Length | 23.28 mm |
| Width | 23.28 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 44 |
| Height | 4.6 mm |
| Packaging | Tube |
| Depth | 23.28 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Weight | 6803886 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Number of Contacts | 44 |
| Connector Type | Socket |
| Number of Positions | 44 |
| Number of Rows | 4 |
| Row Spacing | 12.7 mm |
| Insulation Material | Polyphenylene |
| Housing Material | PBT |
| Contact Resistance | 15 mΩ |
| Contact Finish - Mating | Tin |
Stock: 784
Distributors
pcbx
pcbxUnit Price$1.35124
Ext.Price$1.35124
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.35124 | $1.35124 |
| 10 | $1.14818 | $11.48180 |
| 25 | $1.07585 | $26.89625 |
| 50 | $1.00808 | $50.40400 |
| 100 | $0.94458 | $94.45800 |
| 300 | $0.88508 | $265.52400 |
| 500 | $0.82932 | $414.66000 |
| 1000 | $0.77705 | $777.05000 |
