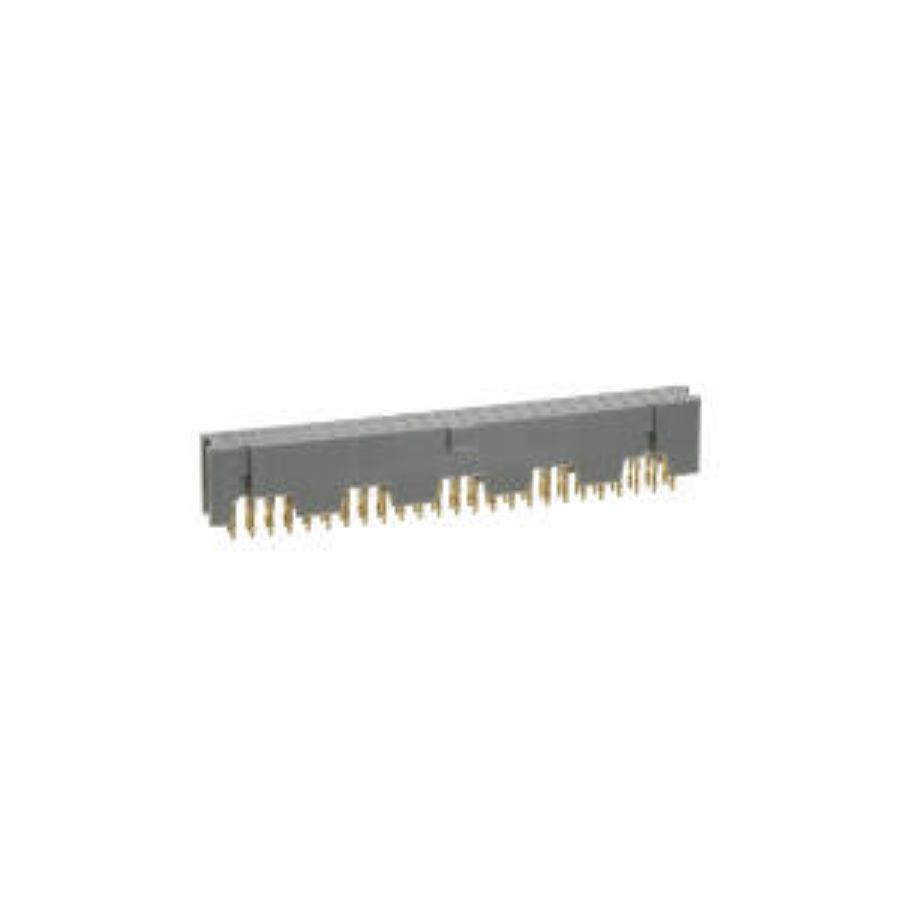

8550-4500PL
Manufacturer:
3M
Mfr.Part #:
8550-4500PL
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:50 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 350 V |
| Length | 68.1 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 50 |
| Height | 11.1 mm |
| Material | Glass, Polyester |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 7.1 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Gold |
| Lead Length | 2.8 mm |
| Contact Material(Contact Finish) | Gold |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Working Voltage | 350 V |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Color | Grey |
| Gender | Receptacle |
| Number of Contacts | 50 |
| Hole Diameter | 890 µm |
| Number of Poles | 50 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Housing Color | Gray |
| Contact Gender | Female |
| Termination Post Length | 2.8 mm |
