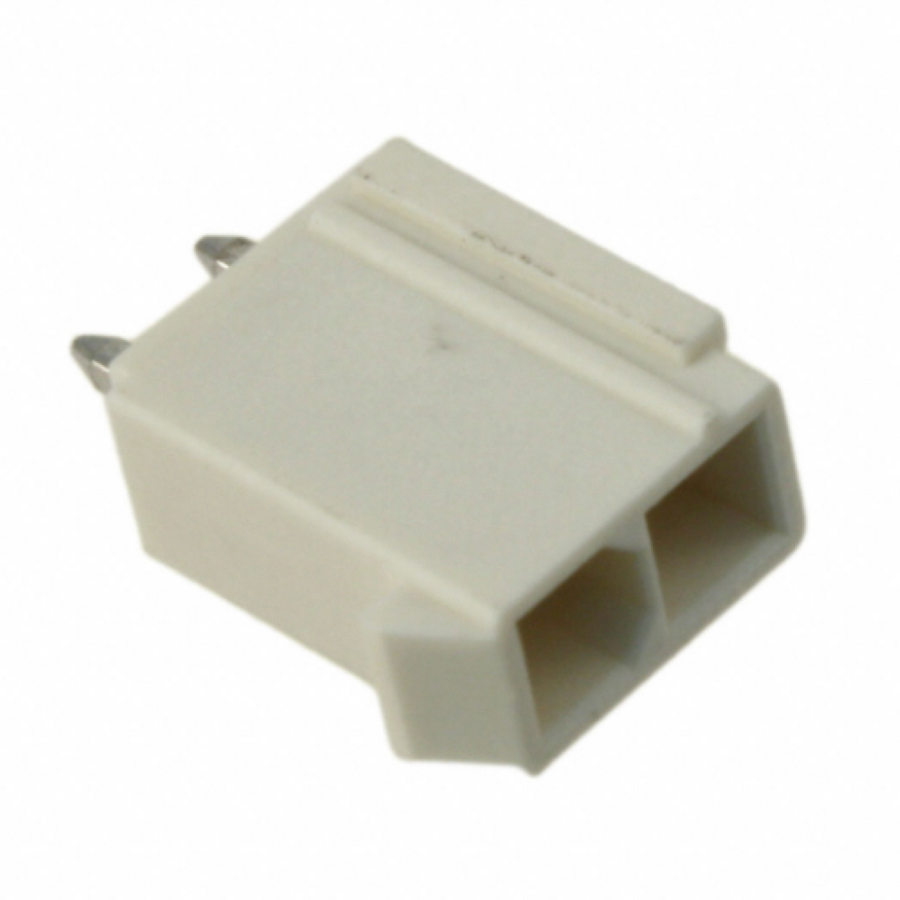

874270202
Manufacturer:
Molex
Mfr.Part #:
874270202
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Length | 11.18 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 10 mm |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Depth | 8.35 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 13 A |
| Number of Circuits | 2 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Receptacle |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | IN |
| Termination Post Length | 3.3 mm |
