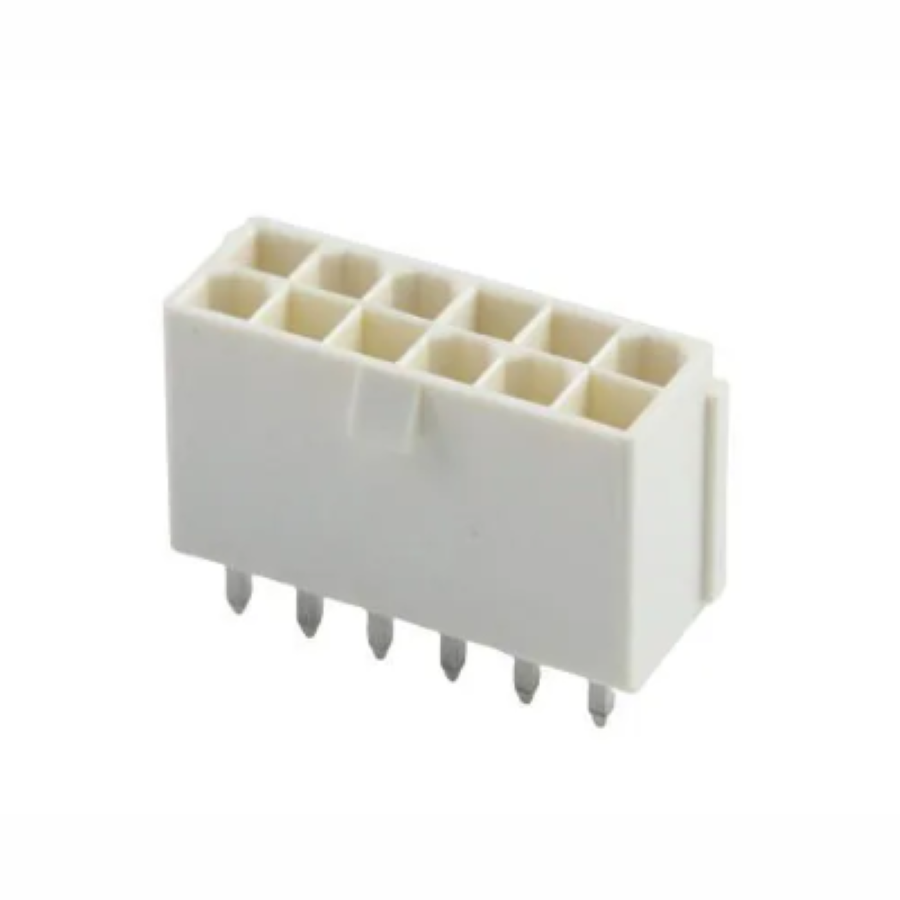

874272042
Manufacturer:
Molex
Mfr.Part #:
874272042
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:20 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Length | 23.79 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 12.19 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 7.62 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Lead Length | 3.3 mm |
| Contact Material(Contact Finish) | Brass, Bronze |
| Pitch | 4.2 mm |
| Current Rating | 6 A |
| Max Current Rating | 3 A |
| Number of Circuits | 20 |
| Orientation | Vertical, Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Male |
| Number of Contacts | 20 |
| Connector Type | Header |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | IN |
| Termination Post Length | 3.3 mm |
Stock: 120
Distributors
pcbx
pcbxUnit Price$1.06541
Ext.Price$1.06541
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.06541 | $1.06541 |
| 10 | $0.88982 | $8.89820 |
| 25 | $0.83139 | $20.78475 |
| 50 | $0.77680 | $38.84000 |
| 100 | $0.72579 | $72.57900 |
| 300 | $0.67813 | $203.43900 |
| 500 | $0.63360 | $316.80000 |
| 1000 | $0.59199 | $591.99000 |
