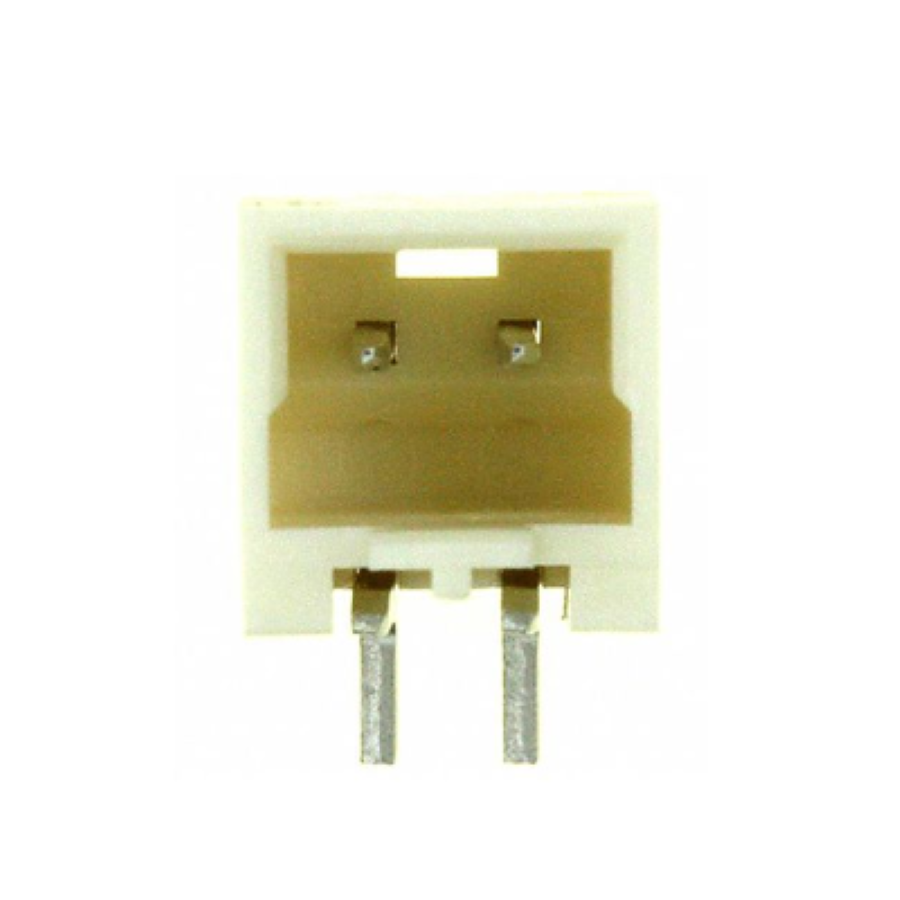

87437-0243
Manufacturer:
Molex
Mfr.Part #:
87437-0243
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:2 Pitch:1.5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 350 V |
| Length | 4.3 mm |
| Width | 4.45 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 350 V |
| Height | 5.75 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.5 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 1.5 mm |
| Current Rating | 2.5 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 40 mΩ |
| Housing Color | Beige |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 2.7 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | SG |
Stock: 467
Distributors
pcbx
pcbxUnit Price$0.30008
Ext.Price$0.30008
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30008 | $0.30008 |
| 10 | $0.26930 | $2.69300 |
| 25 | $0.24964 | $6.24100 |
| 50 | $0.23647 | $11.82350 |
| 100 | $0.22399 | $22.39900 |
| 300 | $0.20124 | $60.37200 |
| 500 | $0.18080 | $90.40000 |
| 1000 | $0.16244 | $162.44000 |
| 3000 | $0.15684 | $470.52000 |
| 5000 | $0.15143 | $757.15000 |
| 10000 | $0.14620 | $1462.00000 |
