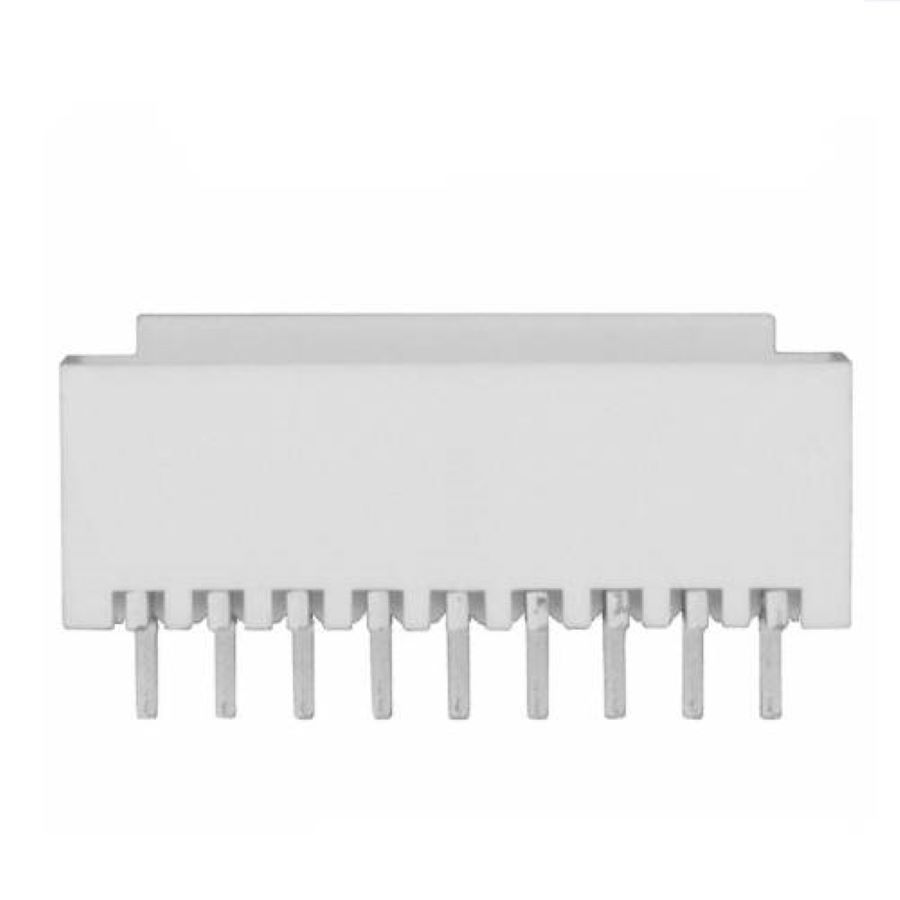

87438-0943
Manufacturer:
Molex
Mfr.Part #:
87438-0943
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:9 Pitch:1.5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 350 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.5 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 1.5 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 9 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Beige |
| Gender | Pin (Male) |
| Number of Contacts | 9 |
| Connector Type | Header |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 40 mΩ |
| Max Voltage Rating (AC) | 350 V |
| Housing Color | Beige |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 2.6924 mm |
| Contact Gender | Male |
| Mating Post Length | 2.7 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 year ago) |
| Country of Origin | SG |
Stock: 6263
Distributors
pcbx
pcbxUnit Price$0.39413
Ext.Price$0.39413
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.39413 | $0.39413 |
| 10 | $0.39070 | $3.90700 |
| 25 | $0.38814 | $9.70350 |
| 50 | $0.38642 | $19.32100 |
| 100 | $0.38472 | $38.47200 |
| 300 | $0.38215 | $114.64500 |
| 500 | $0.37959 | $189.79500 |
| 1000 | $0.29495 | $294.95000 |
