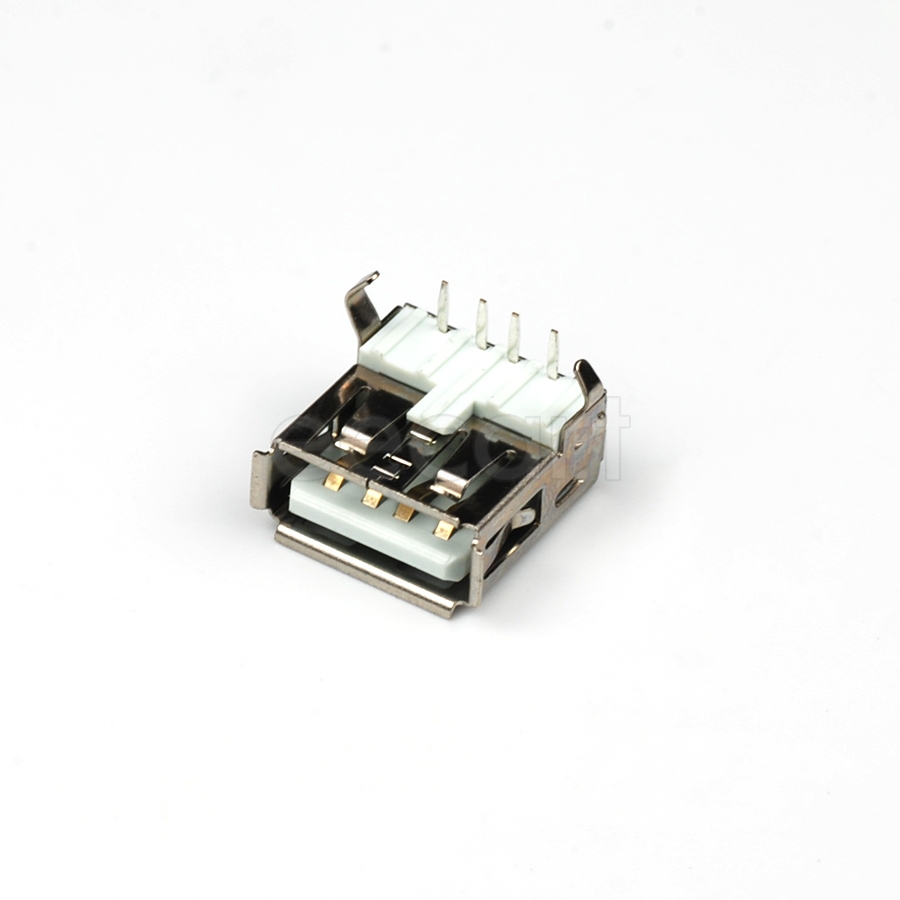

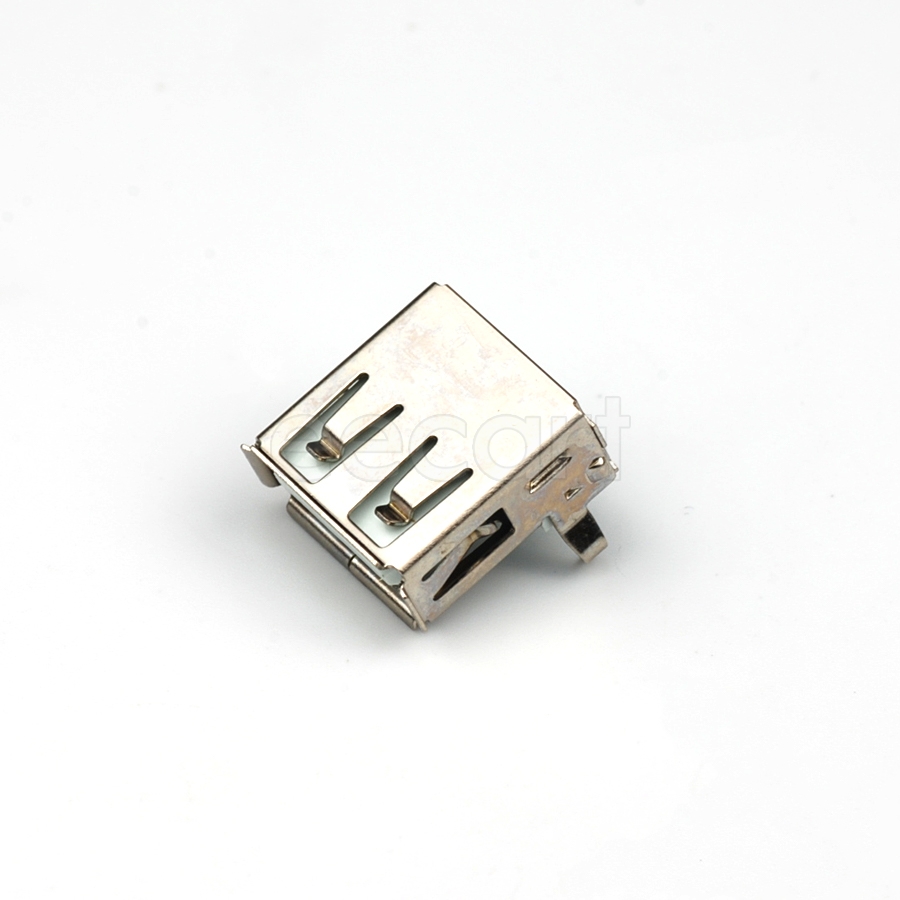

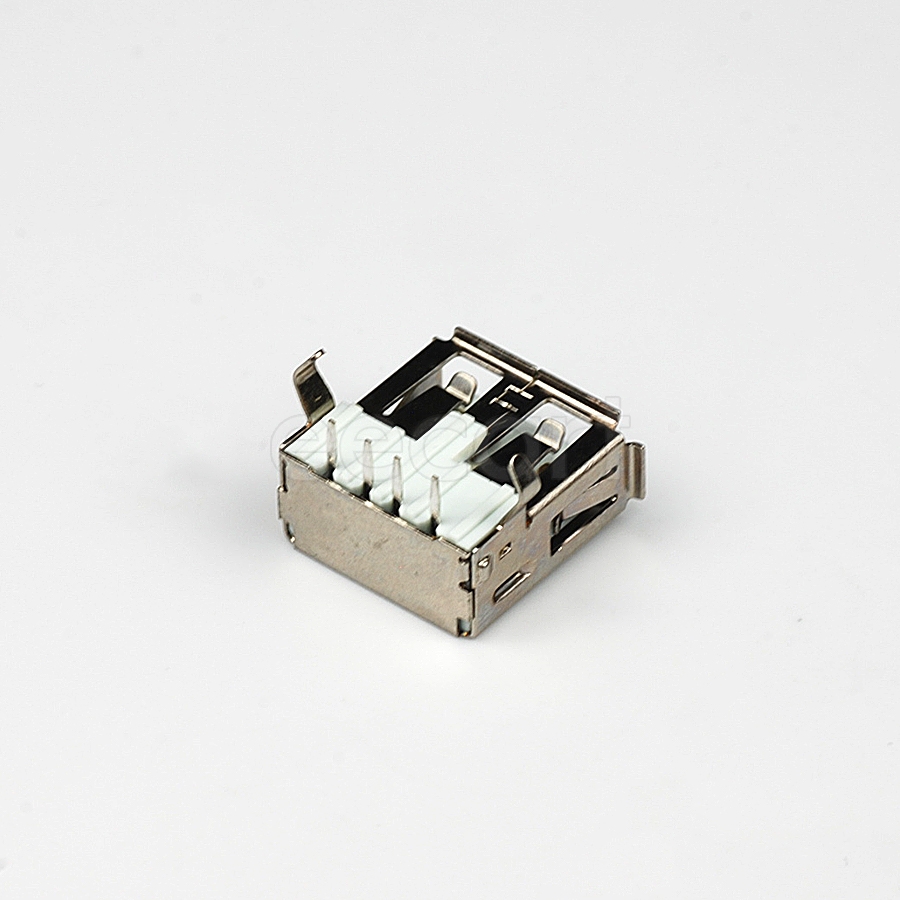

87583-2010BLF
Manufacturer:
Amphenol
Mfr.Part #:
87583-2010BLF
Datasheet:
Description:
USB Connectors SMD/SMT USB-A (USB TYPE-A) Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Length | 14.5 mm |
| Termination | Solder |
| Min Operating Temperature | 0 °C |
| Number of Pins | 4 |
| Material | Tin |
| Depth | 14 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Number of Terminals | 4 |
| Current Rating | 1 A |
| Interface | USB |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | White |
| Gender | Receptacle |
| Number of Contacts | 4 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | 4 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Resistance | 30 mΩ |
| Plating | Nickel |
| Body Plating | Nickel |
| Type | USB-A (USB TYPE-A) |
| Mounting Angle | Right Angle |
| Shielding | Unshielded |
| Packaging | Tube |
Stock: 2756
Distributors
pcbx
pcbxUnit Price$0.70703
Ext.Price$0.70703
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70703 | $0.70703 |
| 10 | $0.59930 | $5.99300 |
| 25 | $0.56146 | $14.03650 |
| 50 | $0.52601 | $26.30050 |
| 100 | $0.49280 | $49.28000 |
| 300 | $0.46169 | $138.50700 |
| 500 | $0.43254 | $216.27000 |
| 1000 | $0.40524 | $405.24000 |
