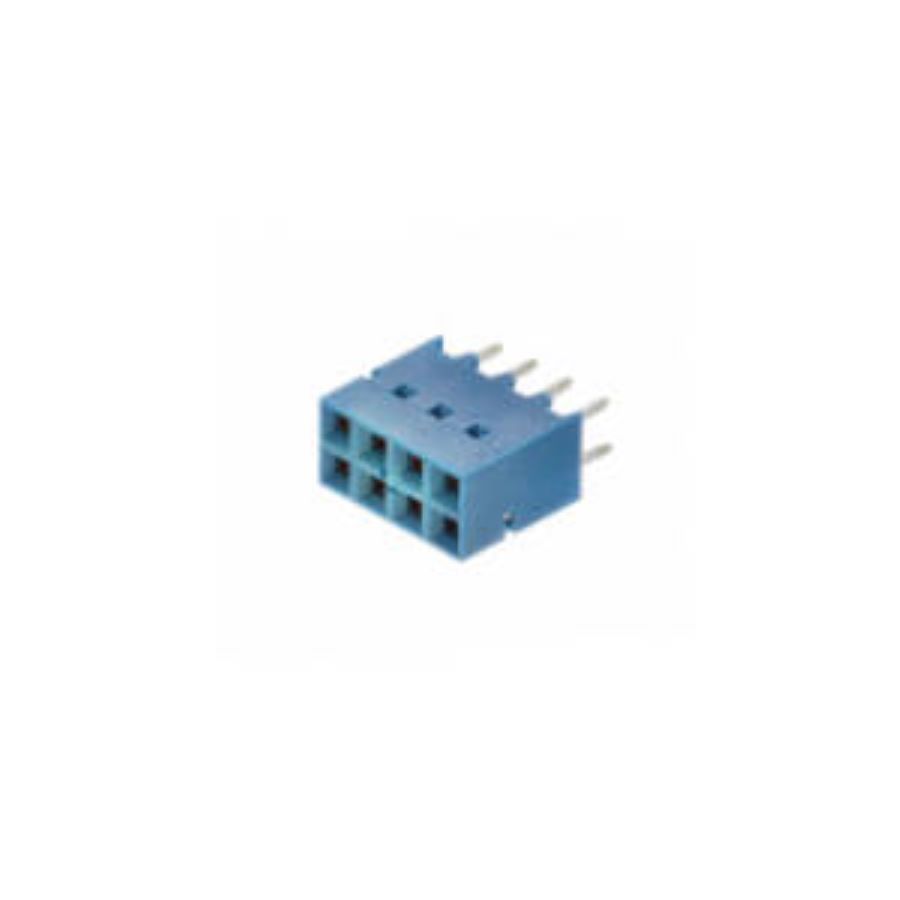

87606-304LF
Manufacturer:
Amphenol
Mfr.Part #:
87606-304LF
Datasheet:
Description:
Board to Board Connectors Through Hole Receptacle Number of Positions:8 Number of Rows:2 Row Spacing:2.54 mm Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.08 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Blue |
| Gender | Receptacle |
| Number of Contacts | 8 |
| Connector Type | Receptacle |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic (TP) |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Blue |
| Mounting Angle | Vertical |
Stock: 246
Distributors
pcbx
pcbxUnit Price$1.31403
Ext.Price$1.31403
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.31403 | $1.31403 |
| 10 | $1.00796 | $10.07960 |
| 25 | $0.99202 | $24.80050 |
| 50 | $0.97633 | $48.81650 |
| 100 | $0.88229 | $88.22900 |
| 300 | $0.81750 | $245.25000 |
| 500 | $0.75747 | $378.73500 |
| 1000 | $0.71985 | $719.85000 |
