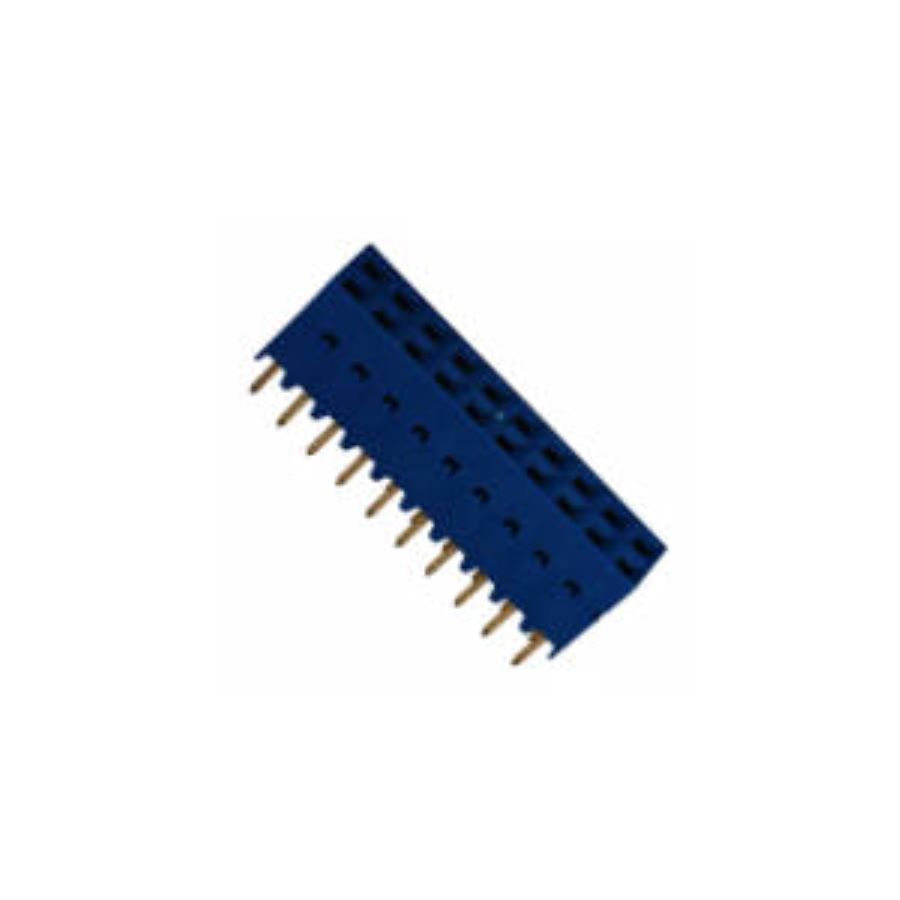

87606-310LF
Manufacturer:
Amphenol
Mfr.Part #:
87606-310LF
Datasheet:
Description:
Board to Board Connectors Through Hole Receptacle Number of Positions:20 Number of Rows:2 Row Spacing:2.54 mm Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 25.32 mm |
| Width | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Tube |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Blue |
| Gender | Receptacle |
| Number of Contacts | 20 |
| Connector Type | Receptacle |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic (TP) |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Blue |
| Mounting Angle | Vertical |
Stock: 97
Distributors
pcbx
pcbxUnit Price$2.19946
Ext.Price$2.19946
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.19946 | $2.19946 |
| 10 | $2.02598 | $20.25980 |
| 25 | $1.95666 | $48.91650 |
| 50 | $1.88971 | $94.48550 |
| 100 | $1.82506 | $182.50600 |
| 300 | $1.79917 | $539.75100 |
| 500 | $1.77365 | $886.82500 |
| 1000 | $1.75095 | $1750.95000 |
