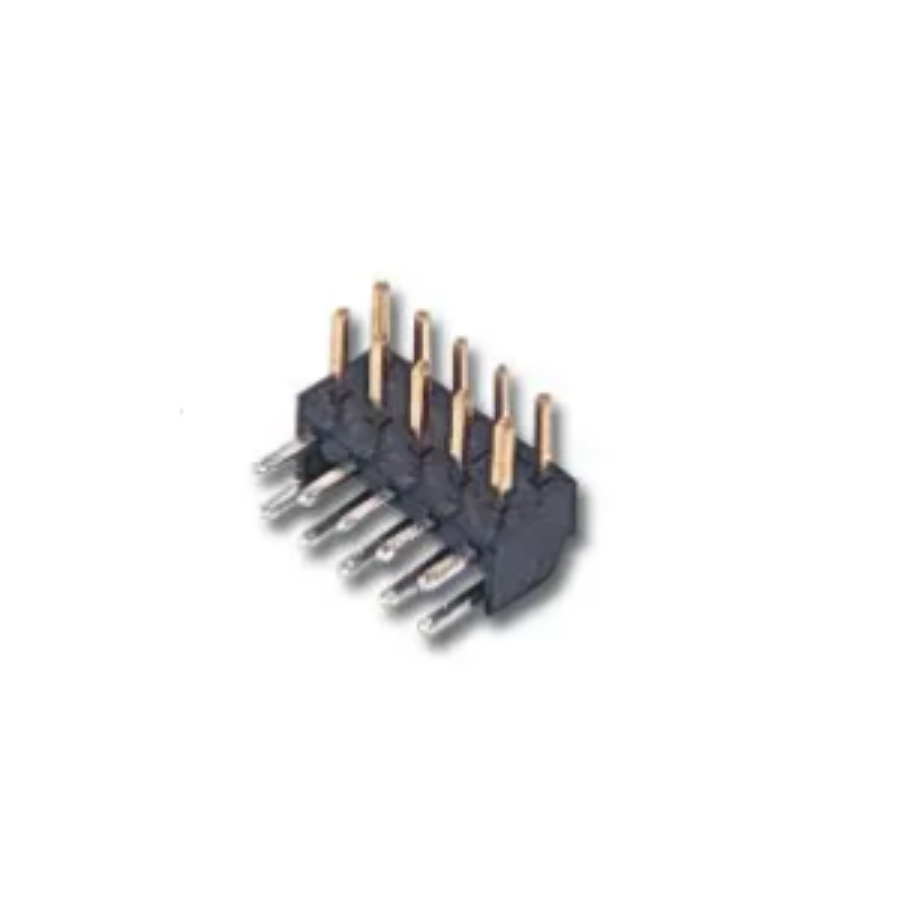

877600816
Manufacturer:
Molex
Mfr.Part #:
877600816
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:8 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating | 125 V |
| Radiation Hardening | No |
| Lead Pitch | 2 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 8 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 8 |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 125 V |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| shrouded | No |
| Mating Post Length | 4 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | SG |
| Termination Post Length | 2.6 mm |
| RoHS | Compliant |
| Packaging | Tray |
