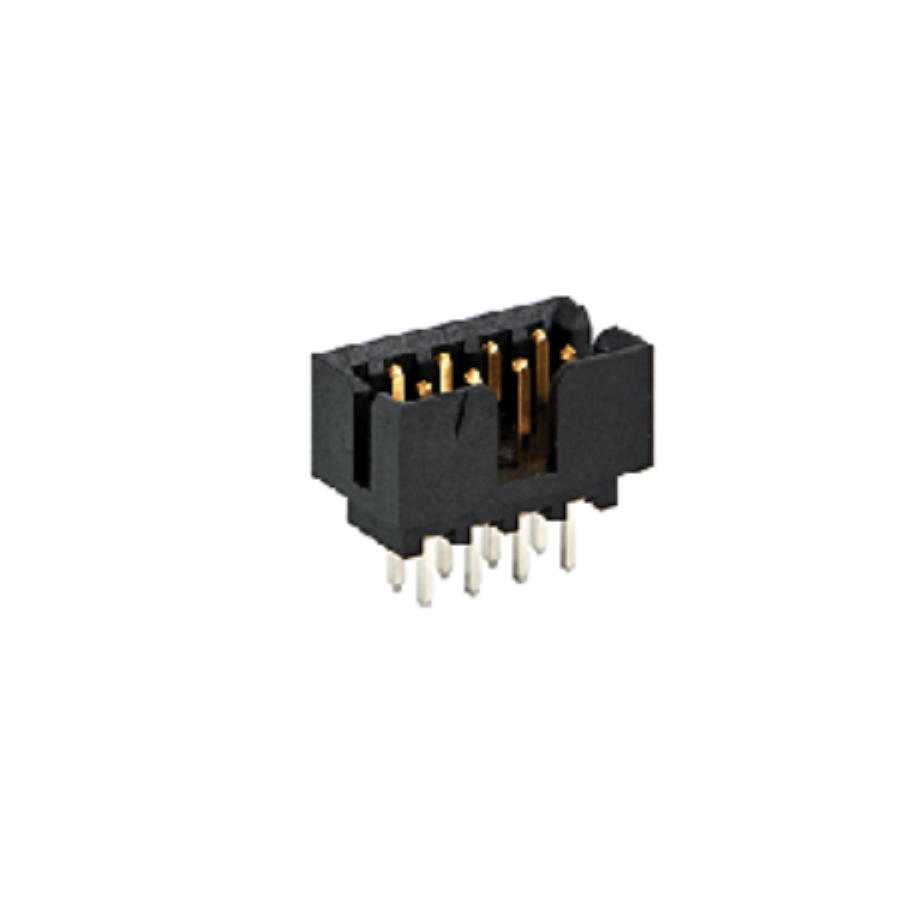

87831-0642
Manufacturer:
Molex
Mfr.Part #:
87831-0642
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:6 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 125 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass, Bronze |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Thermoplastic |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 3.6 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | SG |
| Termination Post Length | 2.5 mm |
Stock: 624
Distributors
pcbx
pcbxUnit Price$0.97034
Ext.Price$0.97034
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.97034 | $0.97034 |
| 10 | $0.88084 | $8.80840 |
| 25 | $0.79959 | $19.98975 |
| 50 | $0.72583 | $36.29150 |
| 100 | $0.68223 | $68.22300 |
| 300 | $0.65338 | $196.01400 |
| 500 | $0.62575 | $312.87500 |
| 1000 | $0.59930 | $599.30000 |
