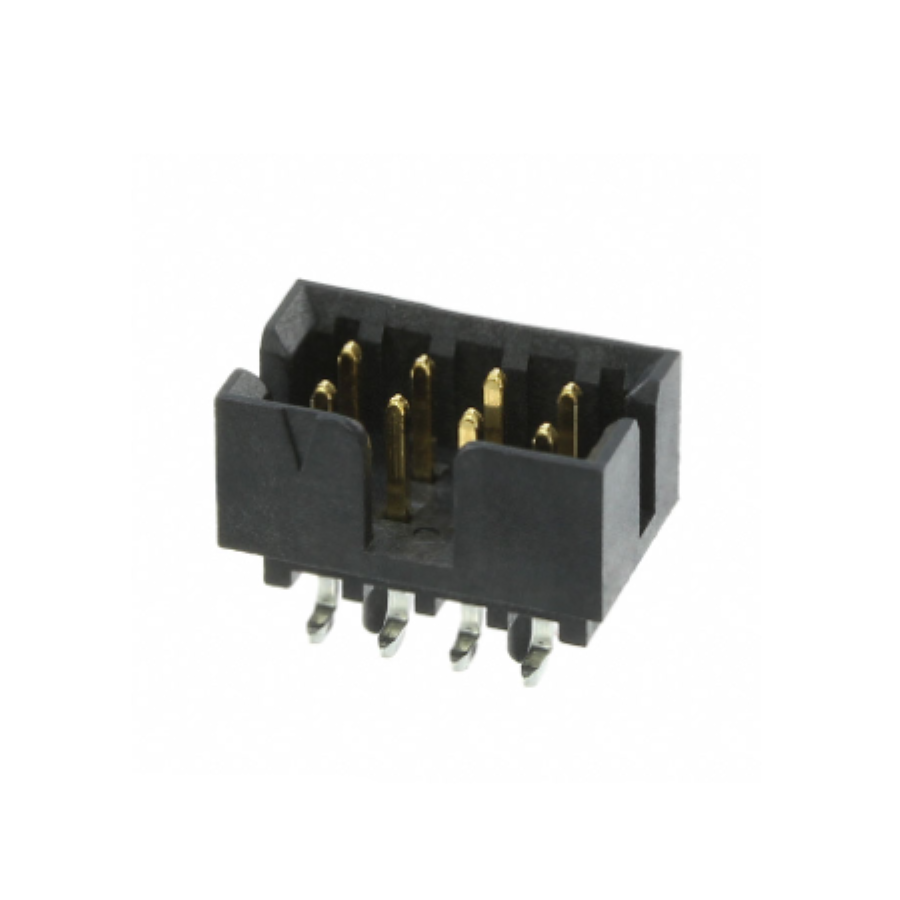

87832-0820
Manufacturer:
Molex
Mfr.Part #:
87832-0820
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:8 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 10.65 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 7.6 mm |
| Packaging | Tube |
| Voltage Rating | 125 V |
| Depth | 6.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 8 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 8 |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 125 V |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| shrouded | Yes |
| Mating Post Length | 3.6 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | SG |
Stock: 3445
Distributors
pcbx
pcbxUnit Price$1.05156
Ext.Price$1.05156
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.05156 | $1.05156 |
| 10 | $0.95799 | $9.57990 |
| 25 | $0.87275 | $21.81875 |
| 50 | $0.79509 | $39.75450 |
| 100 | $0.75747 | $75.74700 |
| 300 | $0.71571 | $214.71300 |
| 500 | $0.67625 | $338.12500 |
| 1000 | $0.65060 | $650.60000 |
