878320628
Manufacturer:
Molex
Mfr.Part #:
878320628
Datasheet:
Description:

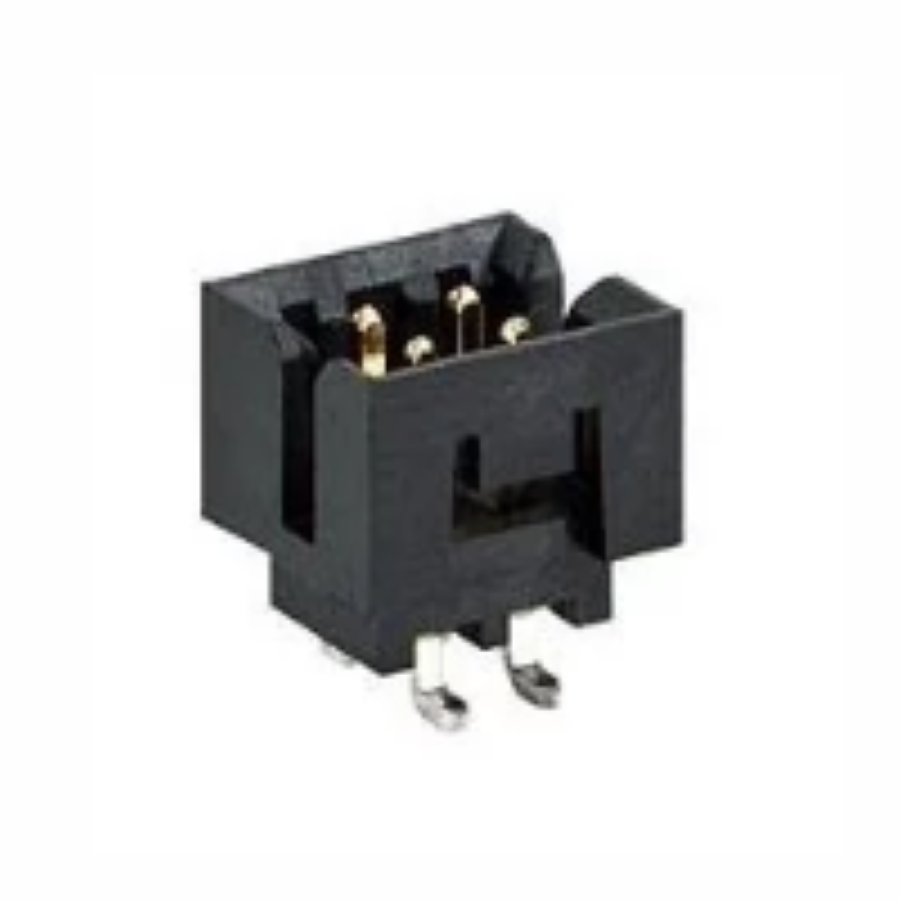

Headers and Wire Housings SMD/SMT Male Pin Number of Positions:6 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 8.65 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Depth | 6.3 mm |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Housing Color | Black |
| Plating | Tin |
| Contact Mating Length | 3.5814 mm |
| Mating Post Length | 3.6 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | SG |
Stock: 1403
Distributors
pcbx
pcbxUnit Price$0.96250
Ext.Price$0.96250
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96250 | $0.96250 |
| 10 | $0.80659 | $8.06590 |
| 25 | $0.75405 | $18.85125 |
| 50 | $0.70494 | $35.24700 |
| 100 | $0.65902 | $65.90200 |
| 300 | $0.63567 | $190.70100 |
| 500 | $0.61314 | $306.57000 |
| 1000 | $0.58869 | $588.69000 |
