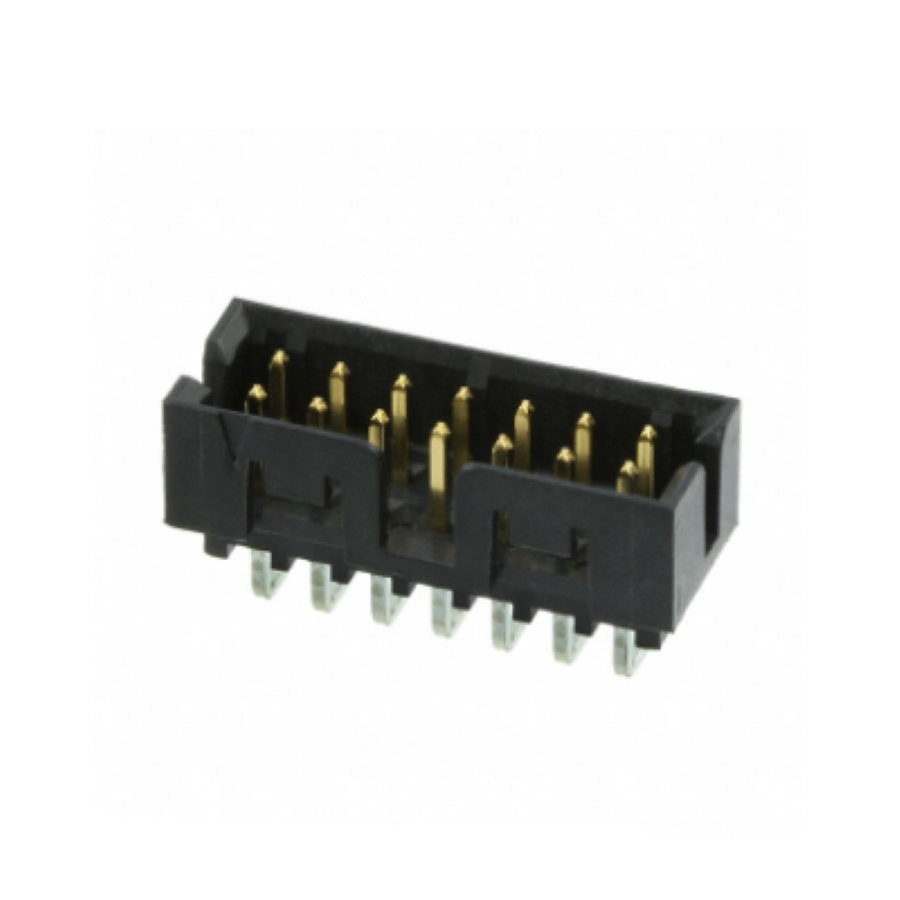

87833-1420
Manufacturer:
Molex
Mfr.Part #:
87833-1420
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:14 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 6.5 mm |
| Packaging | Tube |
| Voltage Rating | 125 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 14 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 14 |
| Connector Type | Header |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Thermoplastic |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 3.6 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 2.16 mm |
Stock: 3684
Distributors
pcbx
pcbxUnit Price$0.94470
Ext.Price$0.94470
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.94470 | $0.94470 |
| 10 | $0.83869 | $8.38690 |
| 25 | $0.63863 | $15.96575 |
| 50 | $0.61983 | $30.99150 |
| 100 | $0.59844 | $59.84400 |
| 300 | $0.57779 | $173.33700 |
| 500 | $0.55785 | $278.92500 |
| 1000 | $0.53860 | $538.60000 |
