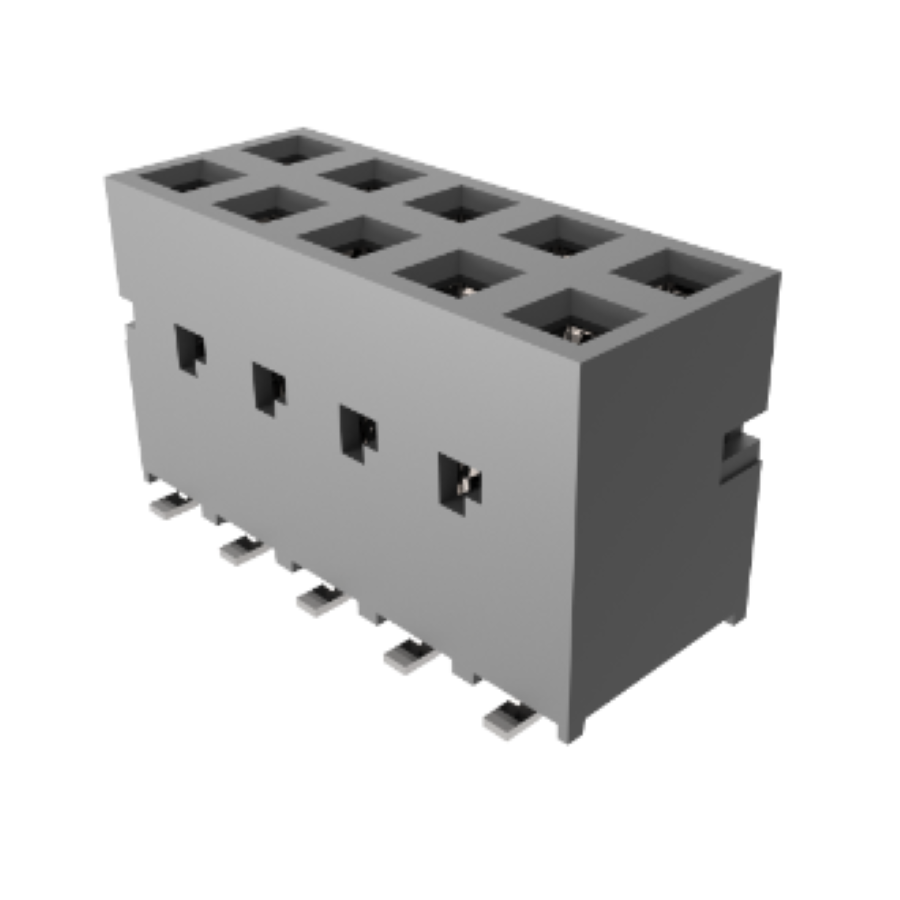

89898-305LF
Manufacturer:
Amphenol
Mfr.Part #:
89898-305LF
Datasheet:
Description:
Board to Board Connectors SMD/SMT Receptacle Number of Positions:10 Number of Rows:2 Row Spacing:2.54 mm Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.62 mm |
| Width | 6 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Grey |
| Gender | Female |
| Number of Contacts | 10 |
| Connector Type | Receptacle |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic (TP) |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Gray |
| Stack Height | 8 mm |
| Schedule B | 8536694040 |
| Packaging | Box |
| Mounting Angle | Vertical |
Stock: 25
Distributors
pcbx
pcbxUnit Price$1.40209
Ext.Price$1.40209
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.40209 | $1.40209 |
| 10 | $1.18920 | $11.89200 |
| 25 | $1.10453 | $27.61325 |
| 50 | $1.02589 | $51.29450 |
| 100 | $0.95284 | $95.28400 |
| 300 | $0.88500 | $265.50000 |
| 500 | $0.82199 | $410.99500 |
| 1000 | $0.76345 | $763.45000 |
