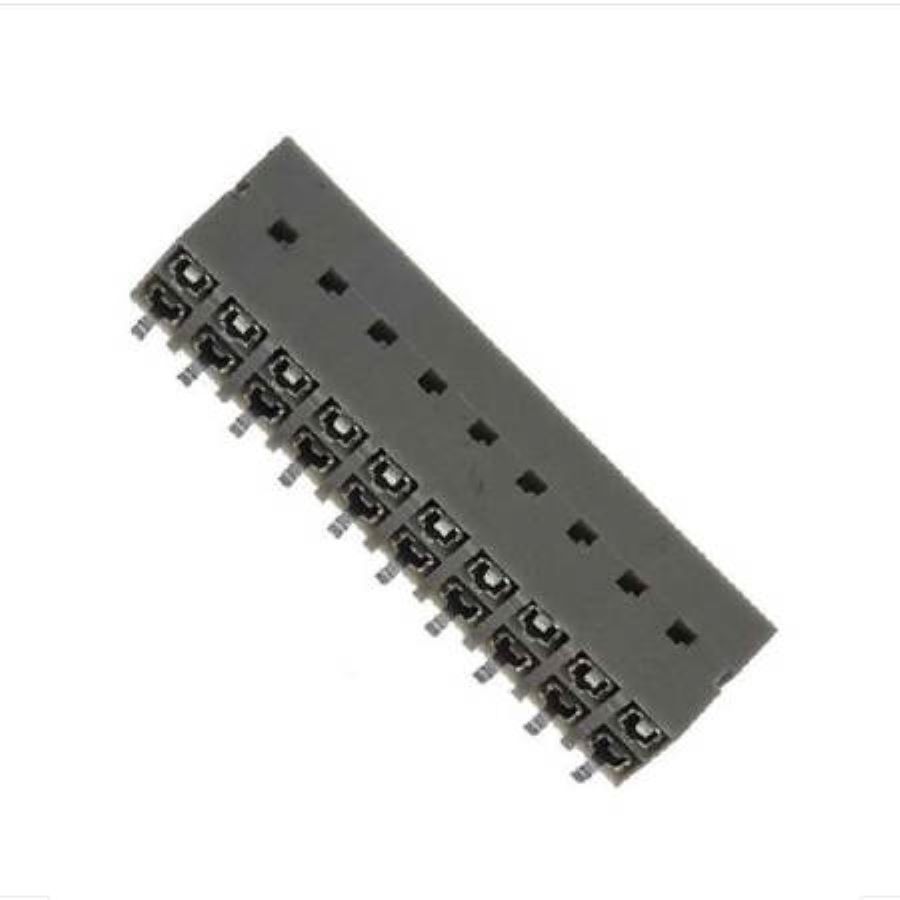

89898-310LF
Manufacturer:
Amphenol
Mfr.Part #:
89898-310LF
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle Number of Positions:20 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 25.32 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Box |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Grey |
| Gender | Female |
| Number of Contacts | 20 |
| Connector Type | Receptacle |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Gray |
Stock: 237
Distributors
pcbx
pcbxUnit Price$2.39723
Ext.Price$2.39723
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.39723 | $2.39723 |
| 10 | $2.03986 | $20.39860 |
| 25 | $1.91902 | $47.97550 |
| 50 | $1.80534 | $90.26700 |
| 100 | $1.69839 | $169.83900 |
| 300 | $1.59778 | $479.33400 |
| 500 | $1.50313 | $751.56500 |
| 1000 | $1.41406 | $1414.06000 |
