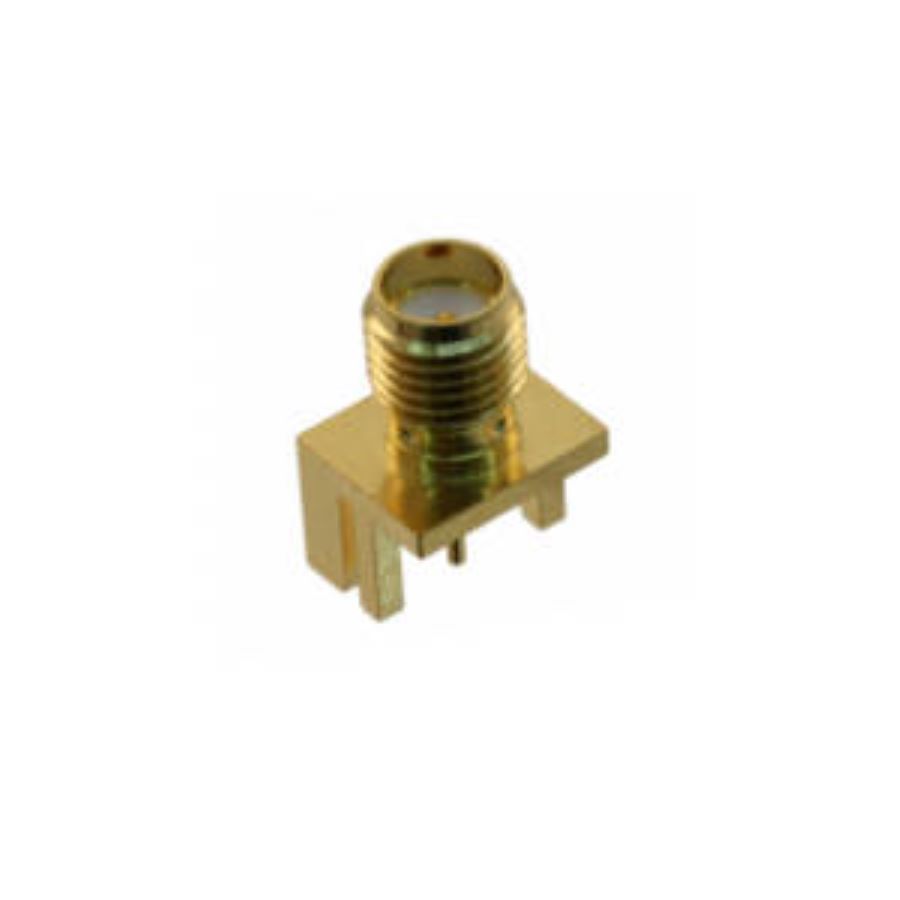

901-10019
Manufacturer:
Amphenol
Mfr.Part #:
901-10019
Datasheet:
Description:
RF / Coaxial Connectors SMD/SMT SMA, Socket 50 Ω
| Parameter | Value |
|---|---|
| Length | 9.5 mm |
| Termination | Solder |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Depth | 13.64 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Copper |
| Frequency | 18 Hz |
| Orientation | Straight |
| Gender | Female |
| Number of Contacts | 1 |
| Body Material | Brass |
| Connector Type | SMA, Socket |
| Max Frequency | 18 GHz |
| Insulation Material | Tetrafluoroethylene |
| Fastening Type | Threaded |
| Housing Color | Gold |
| Plating | Gold |
| Body Plating | Gold |
| RF Series | SMA |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 87
Distributors
pcbx
pcbxUnit Price$12.86070
Ext.Price$12.86070
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $12.86070 | $12.86070 |
| 10 | $11.25857 | $112.58570 |
| 25 | $10.67037 | $266.75925 |
| 50 | $10.56950 | $528.47500 |
| 100 | $10.13776 | $1013.77600 |
| 300 | $9.32645 | $2797.93500 |
| 500 | $8.58007 | $4290.03500 |
