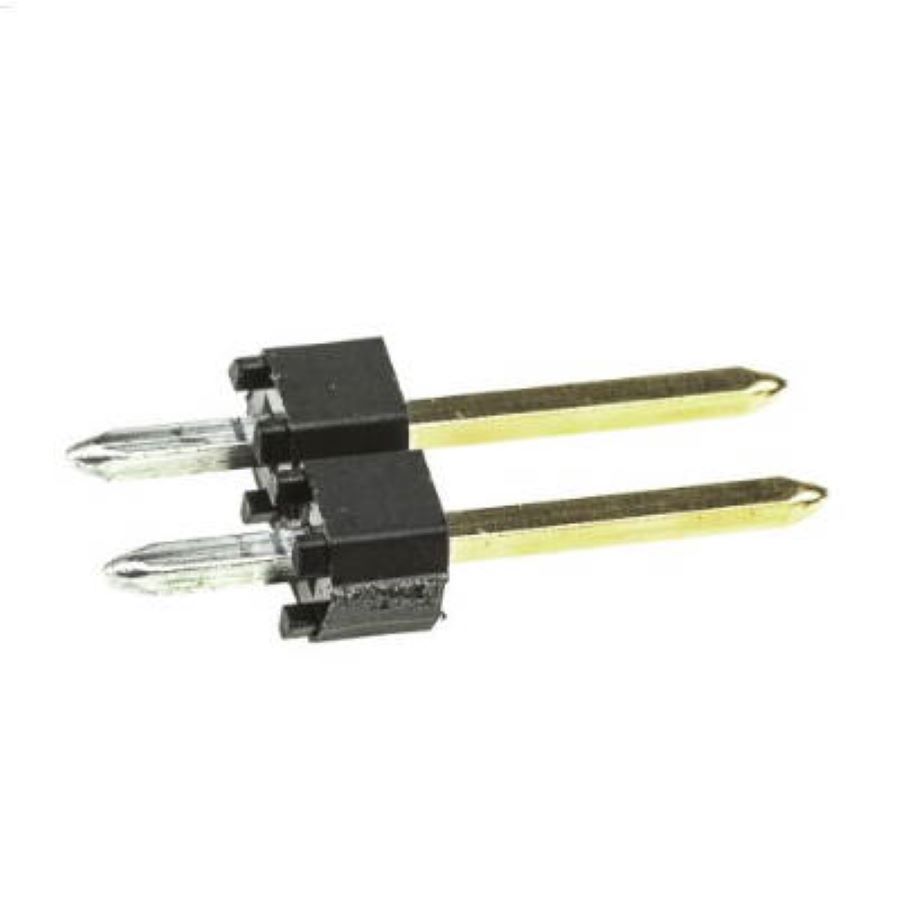

90120-0762
Manufacturer:
Molex
Mfr.Part #:
90120-0762
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Breakaway Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 350 V |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 350 V |
| Number of Pins | 2 |
| Material | Brass |
| Packaging | Bulk |
| Voltage Rating | 350 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass, Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Voltage Rating (DC) | 350.35 kV |
| Working Voltage | 350 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| Connector Type | Header, Breakaway |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Insulation Material | PBT |
| Housing Material | Polyester |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Plating | Nickel |
| glow wire compliant | Non-compliant |
| Mating Post Length | 6.75 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 2.9 mm |
Stock: 10687
Distributors
pcbx
pcbxUnit Price$0.32573
Ext.Price$0.32573
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32573 | $0.32573 |
| 10 | $0.27443 | $2.74430 |
| 25 | $0.25969 | $6.49225 |
| 50 | $0.24574 | $12.28700 |
| 100 | $0.23254 | $23.25400 |
| 300 | $0.22021 | $66.06300 |
| 500 | $0.20854 | $104.27000 |
| 1000 | $0.19749 | $197.49000 |
