90122-0763
Manufacturer:
Molex
Mfr.Part #:
90122-0763
Datasheet:
Description:

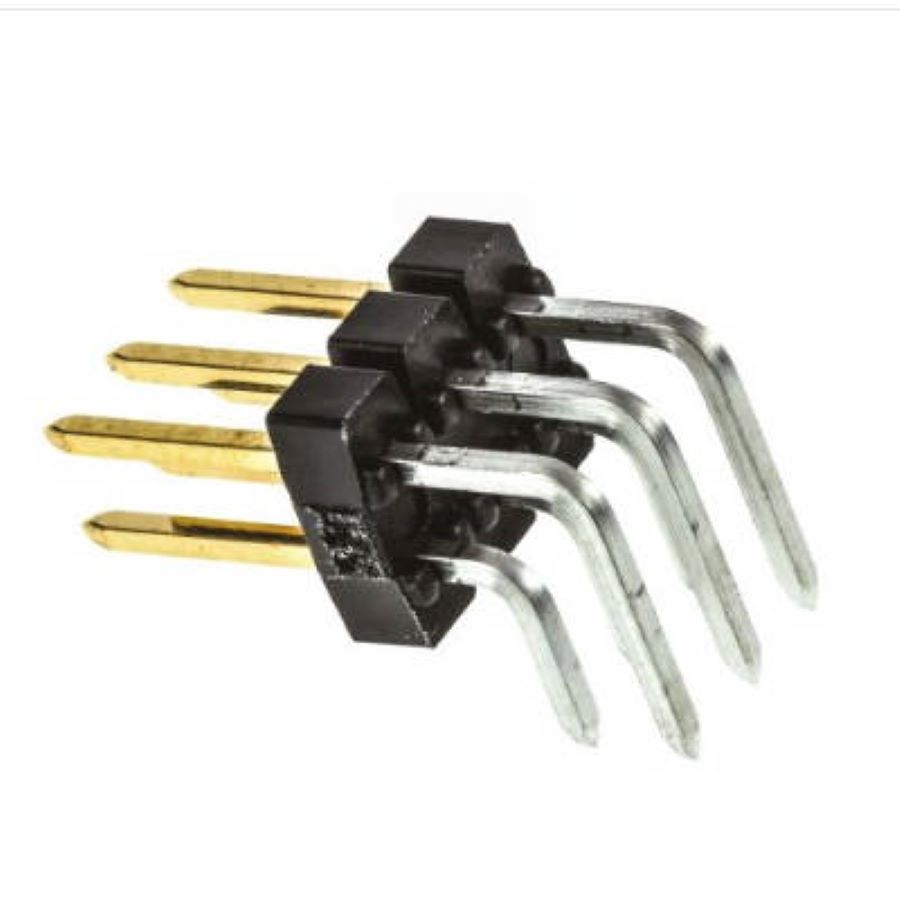

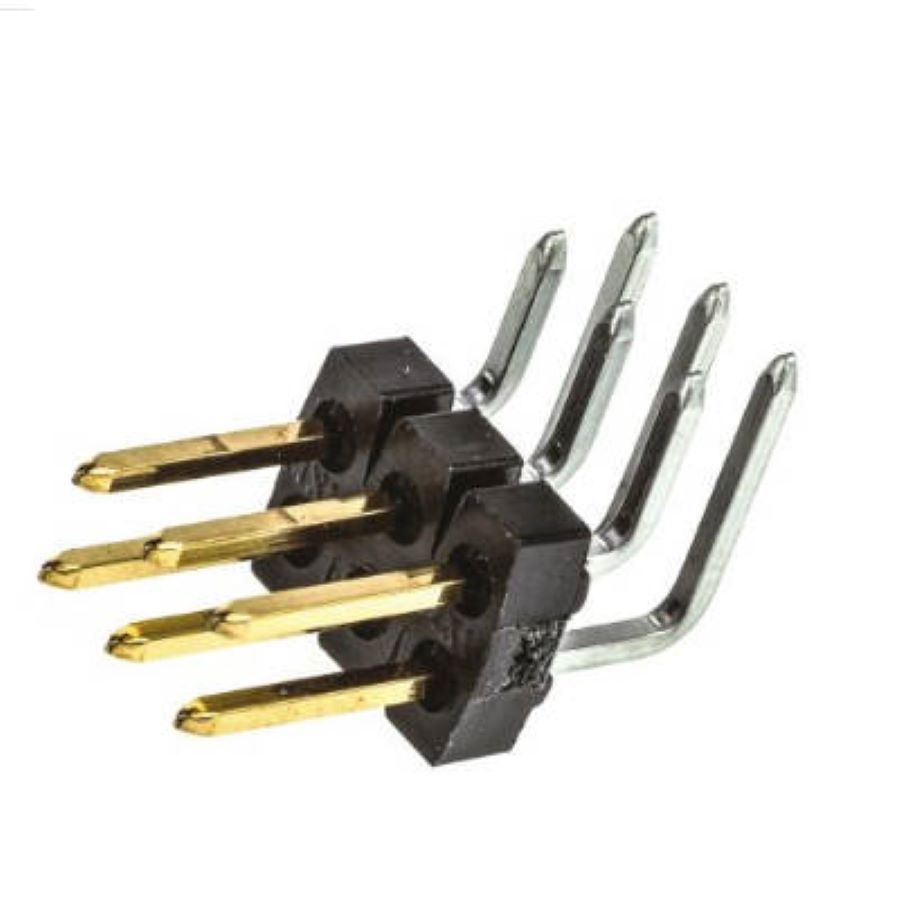

Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 350 V |
| Number of Pins | 6 |
| Material | Glass, Polyester |
| Packaging | Tray |
| Voltage Rating | 350 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold |
| Lead Length | 2.9 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Number of Circuits | 6 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Plating | Tin |
| Contact Mating Length | 6.7564 mm |
| Contact Gender | Male |
| Mating Post Length | 6.75 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | SG |
| Termination Post Length | 2.9 mm |
Stock: 1947
Distributors
pcbx
pcbxUnit Price$0.73182
Ext.Price$0.73182
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73182 | $0.73182 |
| 10 | $0.69506 | $6.95060 |
| 25 | $0.67782 | $16.94550 |
| 50 | $0.66101 | $33.05050 |
| 100 | $0.64462 | $64.46200 |
