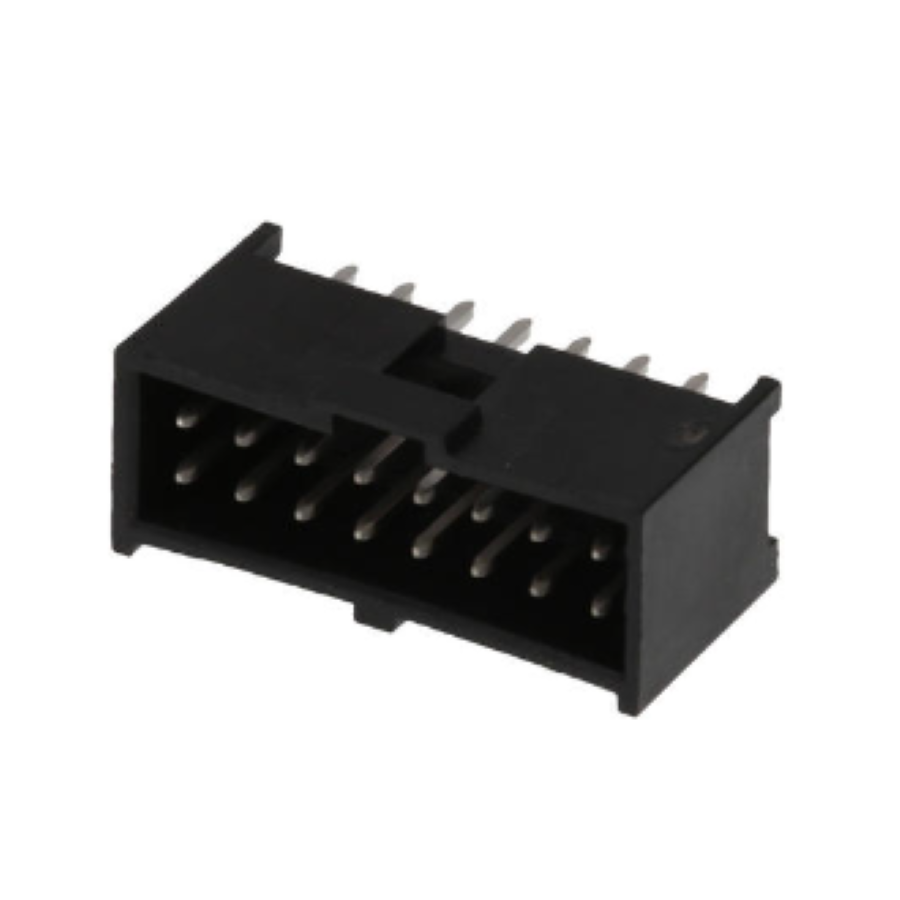

90130-1114
Manufacturer:
Molex
Mfr.Part #:
90130-1114
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:14 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 14 |
| Packaging | Tray |
| Voltage Rating | 350 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Voltage Rating (DC) | 350.35 kV |
| Number of Circuits | 14 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 14 |
| Connector Type | Header |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 6.75 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 2.9 mm |
Stock: 10
Distributors
pcbx
pcbxUnit Price$0.79509
Ext.Price$0.79509
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.79509 | $0.79509 |
| 10 | $0.70703 | $7.07030 |
| 25 | $0.68769 | $17.19225 |
| 50 | $0.66888 | $33.44400 |
| 100 | $0.65060 | $65.06000 |
| 300 | $0.60435 | $181.30500 |
| 500 | $0.56139 | $280.69500 |
| 1000 | $0.52150 | $521.50000 |
