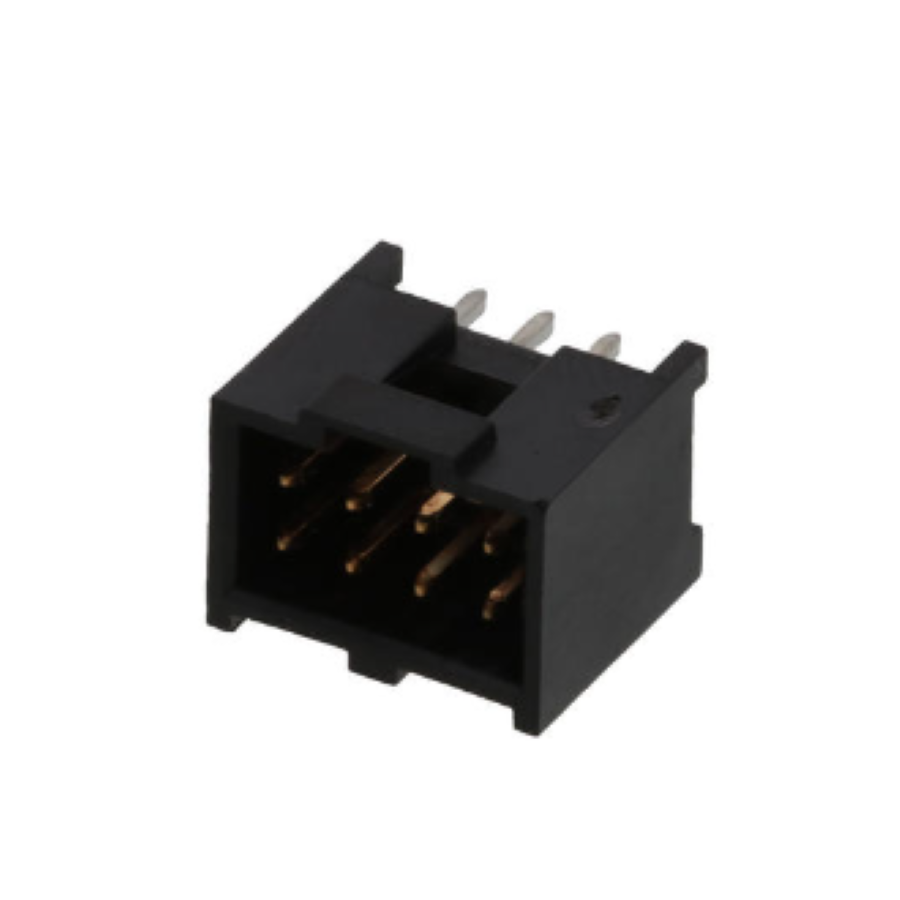

90130-1216
Manufacturer:
Molex
Mfr.Part #:
90130-1216
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 350 V |
| Length | 23.04 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 350 V |
| Number of Pins | 16 |
| Height | 10.9 mm |
| Material | Glass, Polyester |
| Voltage Rating | 350 V |
| Depth | 9.75 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Lead Length | 2.9 mm |
| Contact Material(Contact Finish) | Brass, Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 350.35 kV |
| Working Voltage | 350 V |
| Number of Circuits | 16 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 16 |
| Number of Poles | 16 |
| Connector Type | Male Pin |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 6.7564 mm |
| Contact Gender | Male |
| Mating Post Length | 6.75 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | SK |
| Packaging | Tray |
| Termination Post Length | 2.9 mm |
Stock: 850
Distributors
pcbx
pcbxUnit Price$1.80817
Ext.Price$1.80817
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.80817 | $1.80817 |
| 10 | $1.62693 | $16.26930 |
| 25 | $1.58333 | $39.58325 |
| 50 | $1.45167 | $72.58350 |
