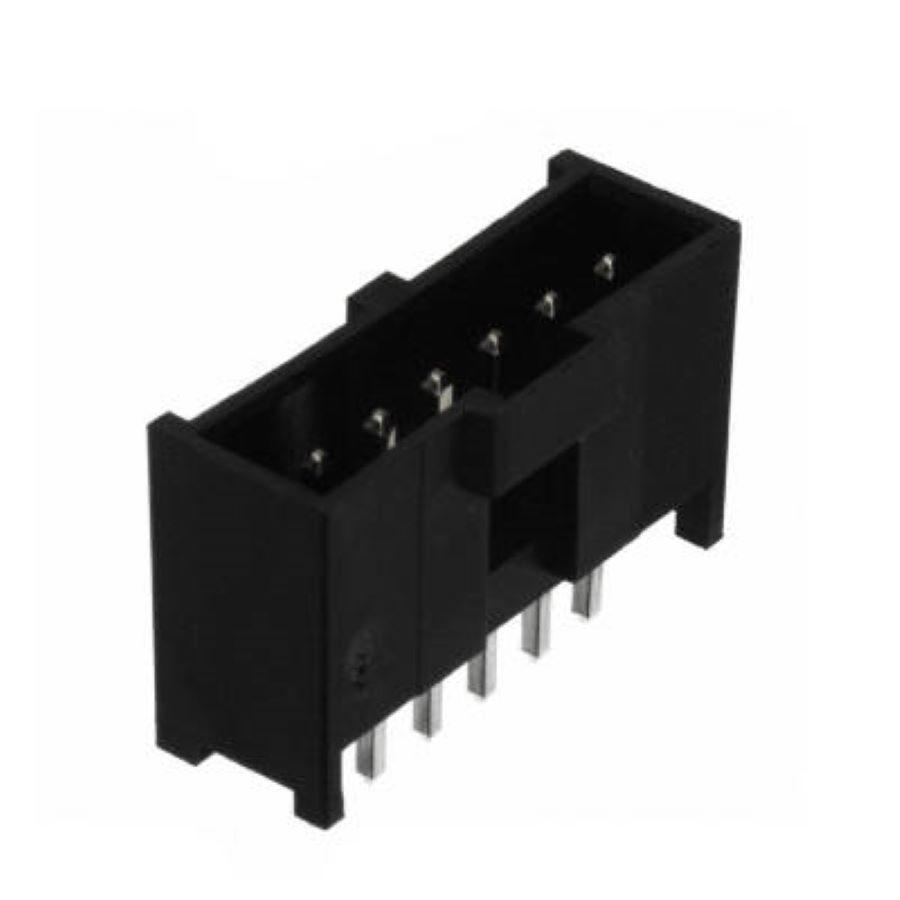

90136-1206
Manufacturer:
Molex
Mfr.Part #:
90136-1206
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 350 V |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 350 V |
| Number of Pins | 6 |
| Material | Glass, Polyester |
| Packaging | Tray |
| Voltage Rating | 350 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass, Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Voltage Rating (DC) | 350.35 kV |
| Working Voltage | 350 V |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Number of Poles | 6 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Fastening Type | Latch |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 350 V |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 6.7564 mm |
| Contact Gender | Male |
| Mating Post Length | 6.75 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | SK |
| Termination Post Length | 2.9 mm |
Stock: 1722
Distributors
pcbx
pcbxUnit Price$0.55057
Ext.Price$0.55057
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55057 | $0.55057 |
| 10 | $0.54801 | $5.48010 |
| 25 | $0.52263 | $13.06575 |
| 50 | $0.49843 | $24.92150 |
| 100 | $0.49189 | $49.18900 |
| 300 | $0.48543 | $145.62900 |
| 500 | $0.47906 | $239.53000 |
| 1000 | $0.47277 | $472.77000 |
