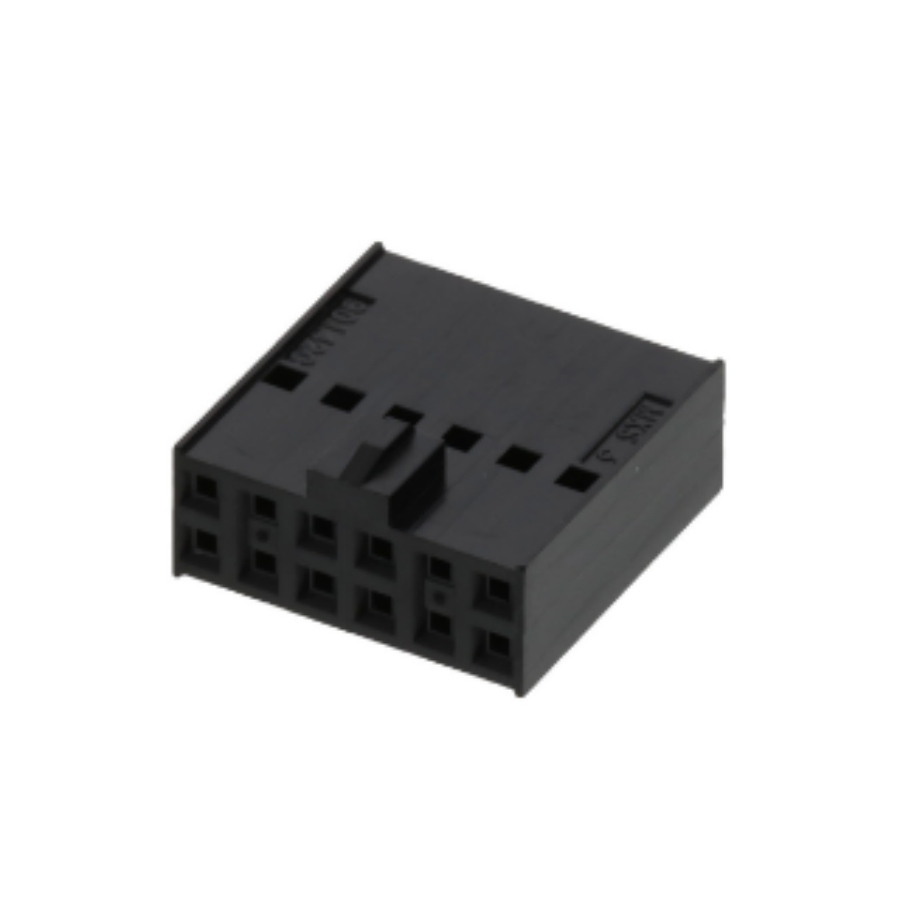

901420018
Manufacturer:
Molex
Mfr.Part #:
901420018
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Power, Receptacle, Rectangular, Socket Number of Positions:18 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 22.86 mm |
| Width | 7.72 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 350 V |
| Number of Pins | 18 |
| Material | Polyphenylene |
| Packaging | Bulk |
| Voltage Rating | 350 V |
| Depth | 15.24 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | Unknown |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 18 |
| Connector Type | Power, Receptacle, Rectangular, Socket |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | PPO |
| Fastening Type | Ramp |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | SG |
