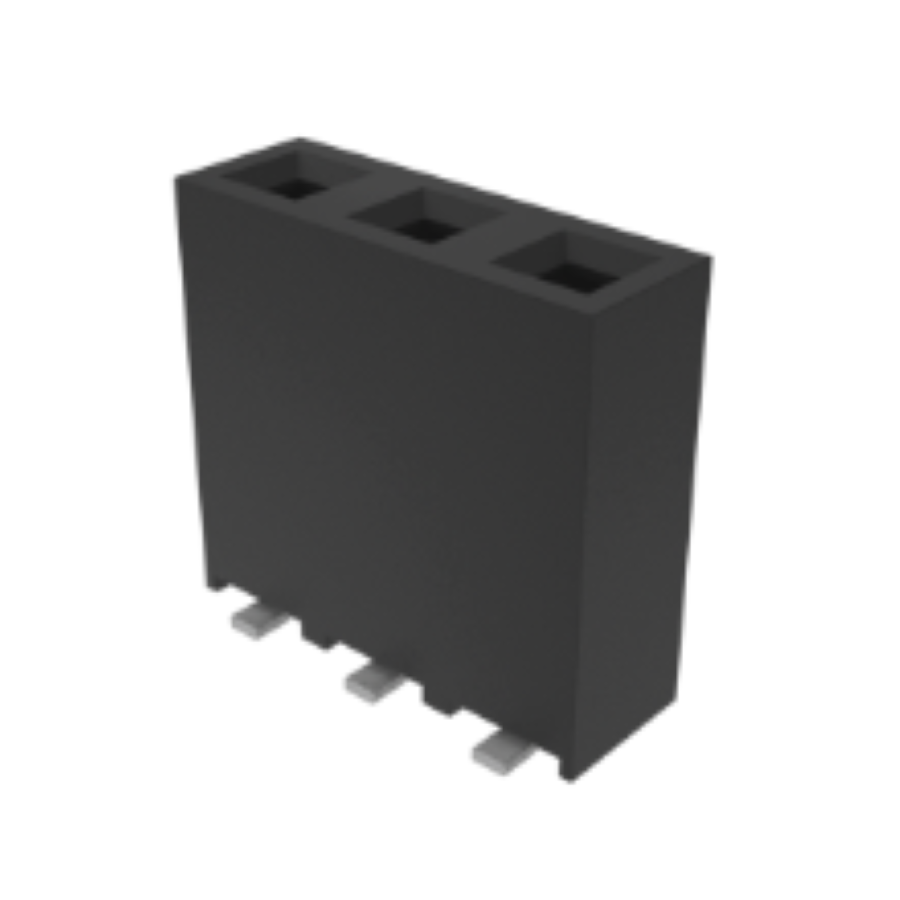

91601-302LF
Manufacturer:
Amphenol
Mfr.Part #:
91601-302LF
Datasheet:
Description:
Board to Board Connectors SMD/SMT Receptacle Number of Positions:2 Number of Rows:1 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 4.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Grey |
| Number of Contacts | 2 |
| Connector Type | Receptacle |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic (TP) |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Gray |
| Stack Height | 10.81 mm |
| Schedule B | 8536694040 |
| Mounting Angle | Vertical |
Stock: 958
Distributors
pcbx
pcbxUnit Price$0.28811
Ext.Price$0.28811
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28811 | $0.28811 |
| 10 | $0.24537 | $2.45370 |
| 25 | $0.23244 | $5.81100 |
| 50 | $0.22019 | $11.00950 |
| 100 | $0.20860 | $20.86000 |
| 300 | $0.19555 | $58.66500 |
| 500 | $0.18331 | $91.65500 |
| 1000 | $0.17184 | $171.84000 |
| 3000 | $0.16283 | $488.49000 |
| 5000 | $0.15429 | $771.45000 |
| 10000 | $0.14620 | $1462.00000 |
