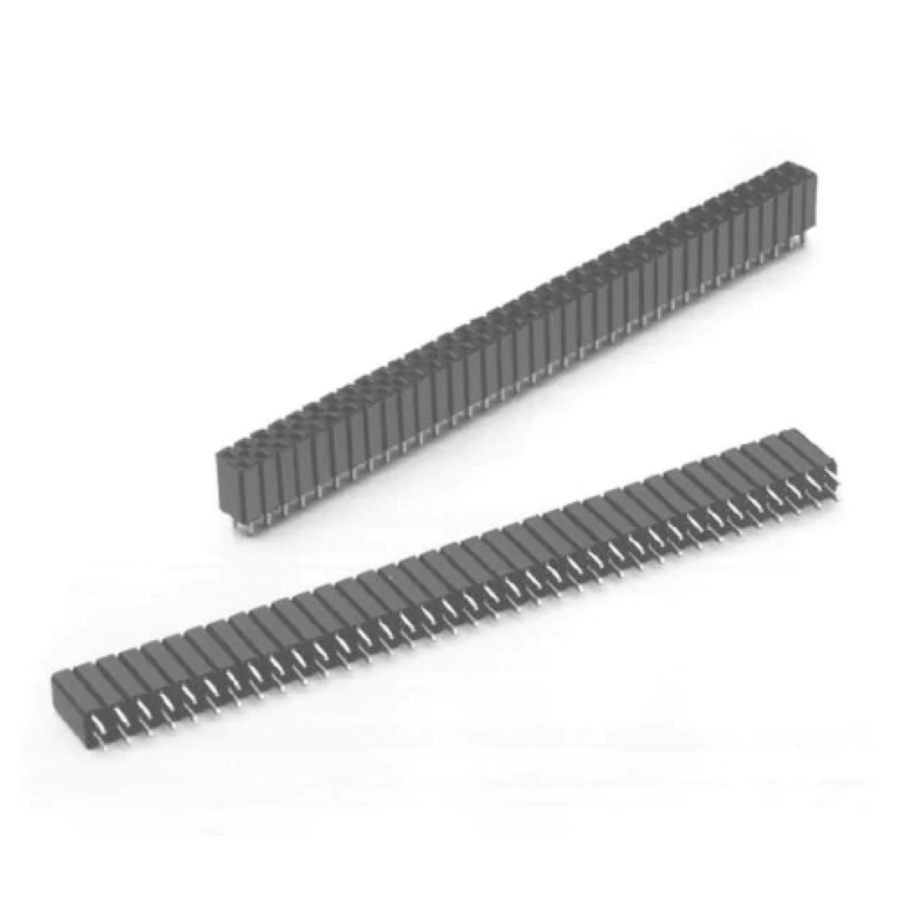

929400-01-06-RK
Manufacturer:
3M
Mfr.Part #:
929400-01-06-RK
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.2 mm |
| Width | 2.44 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.79 mm |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Pitch | 2.54 mm |
| Current Rating | 2.5 A |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polycyclohexylenedimethylene |
| Housing Color | Black |
| Contact Mating Length | 7.493 mm |
| Contact Gender | Male |
| Mating Post Length | 7.49 mm |
| Termination Post Length | 3.3 mm |
Stock: 153
Distributors
pcbx
pcbxUnit Price$0.36618
Ext.Price$0.36618
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36618 | $0.36618 |
| 10 | $0.34299 | $3.42990 |
| 25 | $0.32127 | $8.03175 |
| 50 | $0.30092 | $15.04600 |
| 100 | $0.28186 | $28.18600 |
| 300 | $0.26401 | $79.20300 |
| 500 | $0.24729 | $123.64500 |
| 1000 | $0.23163 | $231.63000 |
| 3000 | $0.21696 | $650.88000 |
| 5000 | $0.20322 | $1016.10000 |
| 10000 | $0.19035 | $1903.50000 |
