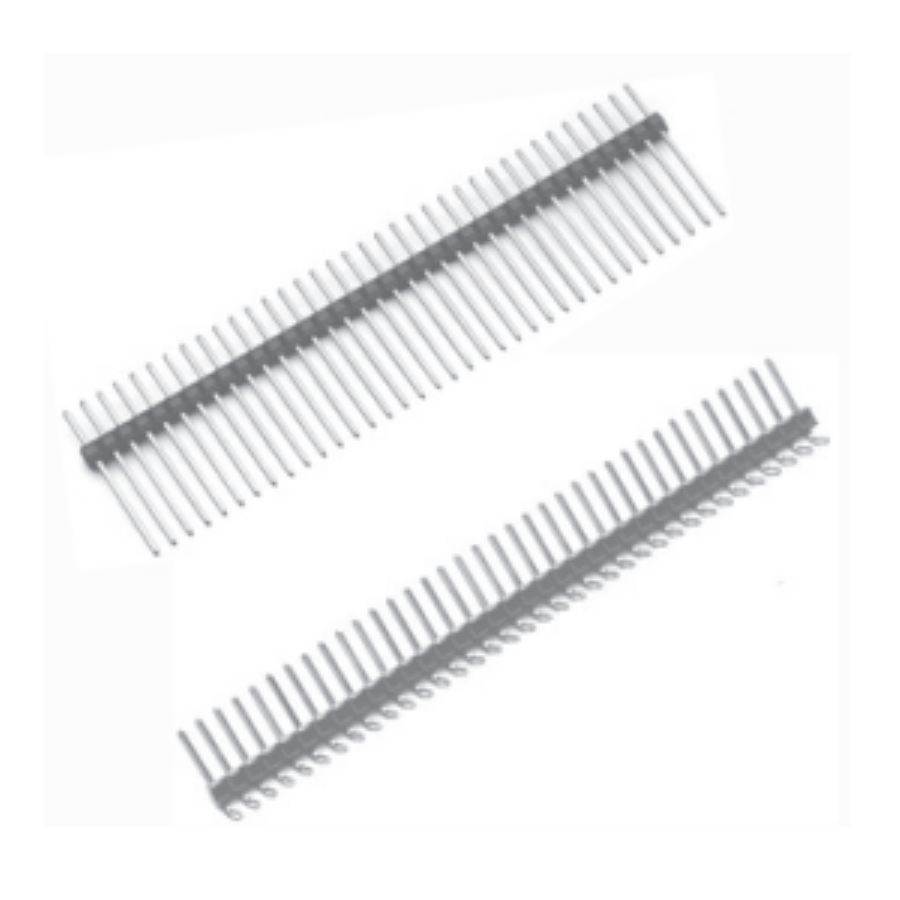

929665-02-04-I
Manufacturer:
3M
Mfr.Part #:
929665-02-04-I
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.2 mm |
| Width | 5.46 mm |
| Termination | Solder |
| Height | 2.54 mm |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Current Rating | 2.5 A |
| Color | Black |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Male Pin |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Plastic |
| Housing Color | Black |
| Contact Mating Length | 5.969 mm |
| Contact Gender | Male |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Mating Post Length | 5.97 mm |
| Termination Post Length | 5.33 mm |
Stock: 16085
Distributors
pcbx
pcbxUnit Price$1.41177
Ext.Price$1.41177
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.41177 | $1.41177 |
| 10 | $1.20129 | $12.01290 |
| 25 | $1.13777 | $28.44425 |
| 50 | $1.07761 | $53.88050 |
| 100 | $1.02061 | $102.06100 |
| 300 | $0.96426 | $289.27800 |
| 500 | $0.91102 | $455.51000 |
| 1000 | $0.86754 | $867.54000 |
| 3000 | $0.81969 | $2459.07000 |
| 5000 | $0.77447 | $3872.35000 |
