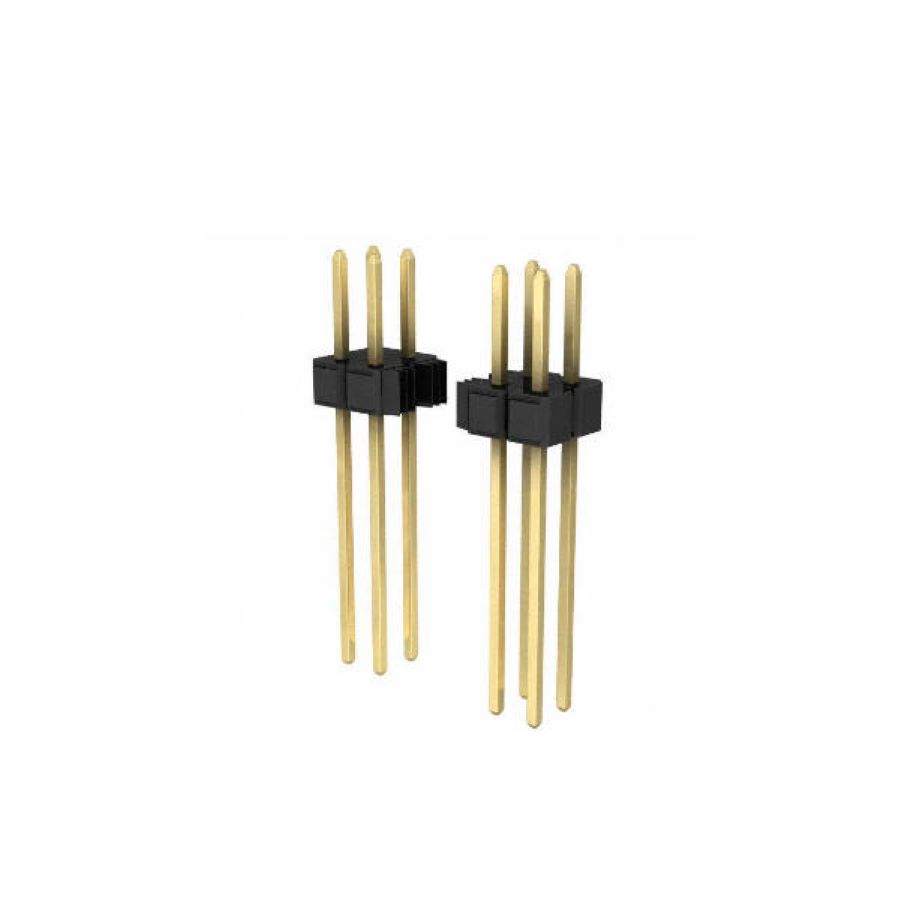

929665-05-36-I
Manufacturer:
3M
Mfr.Part #:
929665-05-36-I
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:72 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Current Rating | 2.5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 72 |
| Connector Type | Male Pin |
| Number of Positions | 72 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Insulation Material | Polyester |
| Housing Material | Plastic |
| Housing Color | Black |
| Contact Mating Length | 5.969 mm |
| Contact Gender | Male |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Mating Post Length | 5.97 mm |
| Termination Post Length | 15.24 mm |
Stock: 83
Distributors
pcbx
pcbxUnit Price$8.60604
Ext.Price$8.60604
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.60604 | $8.60604 |
| 10 | $7.31018 | $73.10180 |
| 25 | $6.92475 | $173.11875 |
| 50 | $6.55964 | $327.98200 |
| 100 | $6.21387 | $621.38700 |
| 300 | $5.87111 | $1761.33300 |
| 500 | $5.54728 | $2773.64000 |
| 1000 | $5.28288 | $5282.88000 |
