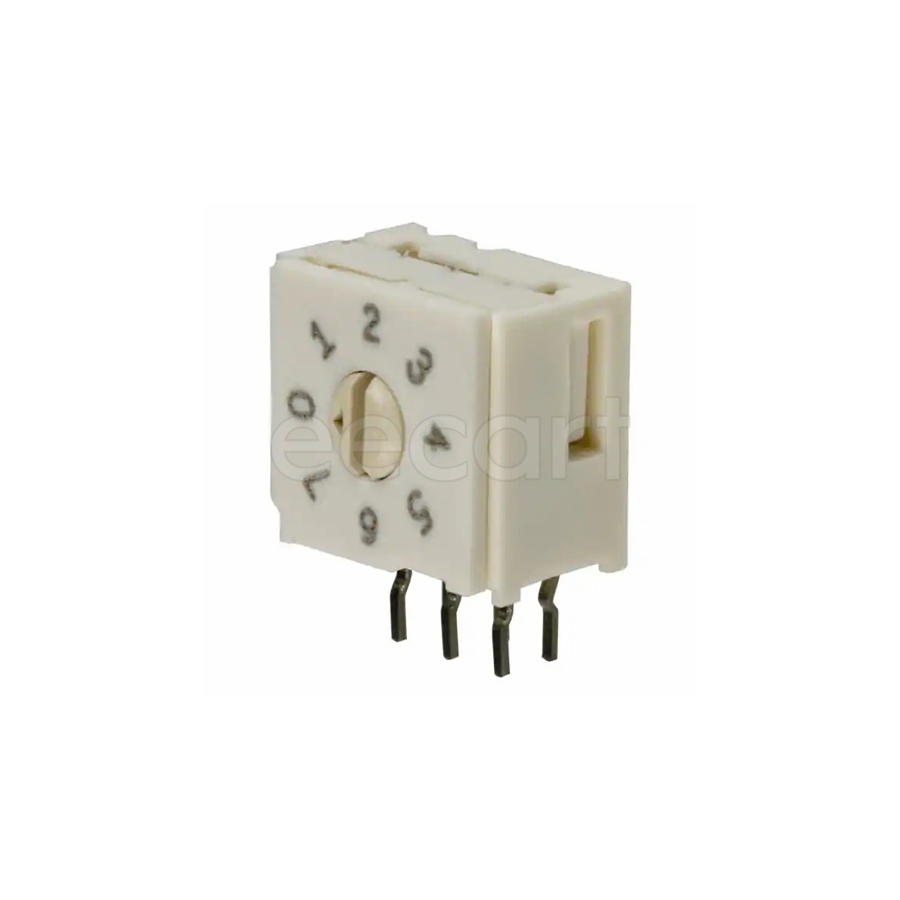

94HAB08RAT
Manufacturer:
Grayhill
Mfr.Part #:
94HAB08RAT
Datasheet:
Description:
DIP Switches Through Hole Number of Positions:8 Current Rating:100 mA Flush
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 10.922 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Material | Plastic |
| Packaging | Tube |
| Depth | 7.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 100 mA |
| Max Current Rating | 300 mA |
| Max Voltage Rating (DC) | 30 V |
| Orientation | Right Angle |
| Body Material | Plastic |
| Actuator Length | 0 m |
| Throw Configuration | SP8T |
| Number of Positions | 8 |
| Contact Resistance | 50 mΩ |
| Electrical Life | 10 kcycles |
| Actuator Material | Plastic |
| Mechanical Life | 10 kcycles |
| switching current | 30 mA |
| Actuator Type | Flush |
| Switching Voltage | 30 V |
| Washable | Yes |
