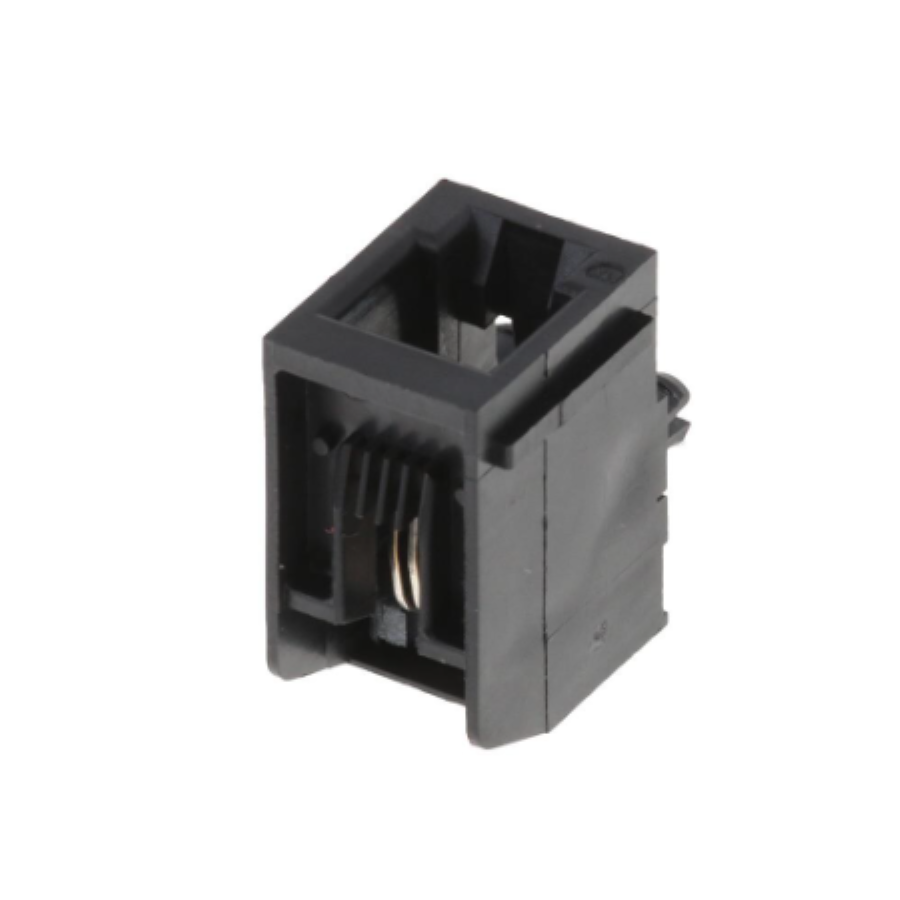

95009-7441
Manufacturer:
Molex
Mfr.Part #:
95009-7441
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ11 Receptacle Current Rating:1.5 A Voltage Rating:125 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 15.24 mm |
| Width | 16.38 mm |
| Termination | Through Hole |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 11.56 mm |
| Material | Polyester |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Depth | 20.57 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 1.5 A |
| Max Voltage Rating (DC) | 125 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Receptacle |
| Shielding | Unshielded |
| Number of Contacts | 4 |
| Hole Diameter | 3.25 mm |
| Direction(Counting Sequence) | |
| Number of Positions | 4 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Plating | Tin |
| Panel Thickness | 1.6 mm |
| Number of Positions Loaded | 8 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | RO |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ11 |
| Number of Positions/Contacts | 4P4C |
Stock: 4527
Distributors
pcbx
pcbxUnit Price$0.43174
Ext.Price$0.43174
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.43174 | $0.43174 |
| 10 | $0.42576 | $4.25760 |
| 25 | $0.41756 | $10.43900 |
| 50 | $0.40951 | $20.47550 |
| 100 | $0.38900 | $38.90000 |
| 300 | $0.33770 | $101.31000 |
