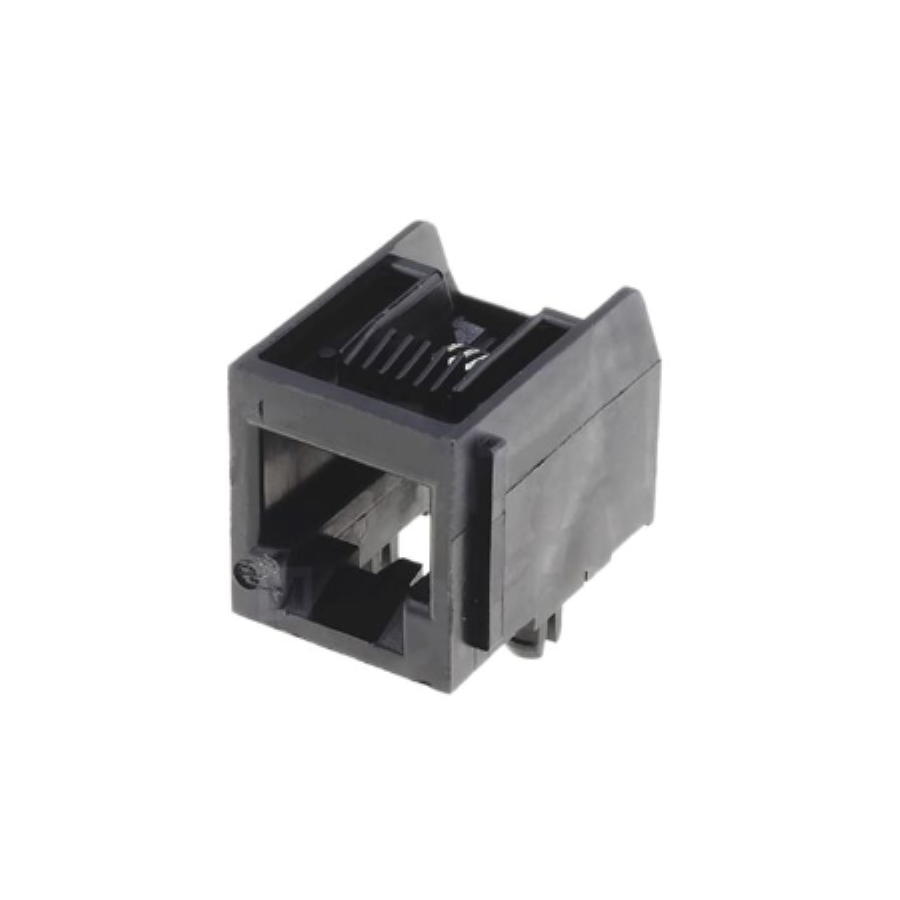

95009-7661
Manufacturer:
Molex
Mfr.Part #:
95009-7661
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ11 Receptacle Current Rating:1.5 A Voltage Rating:125 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 13.21 mm |
| Width | 16 mm |
| Termination | Through Hole |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 13.59 mm |
| Material | Polyester |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Depth | 20.57 mm |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass, Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1.5 A |
| Max Voltage Rating (DC) | 125 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Receptacle |
| Shielding | Unshielded |
| Number of Contacts | 6 |
| Hole Diameter | 3.25 mm |
| Direction(Counting Sequence) | |
| Number of Positions | 6 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Plating | Tin |
| Panel Thickness | 1.6 mm |
| Number of Positions Loaded | 6 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | RO |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ11 |
| Number of Positions/Contacts | 6P6C |
Stock: 1426
Distributors
pcbx
pcbxUnit Price$0.58819
Ext.Price$0.58819
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58819 | $0.58819 |
| 10 | $0.49586 | $4.95860 |
| 25 | $0.43773 | $10.94325 |
| 50 | $0.43003 | $21.50150 |
| 100 | $0.39840 | $39.84000 |
| 300 | $0.37913 | $113.73900 |
| 500 | $0.36078 | $180.39000 |
