951102-7622-AR
Manufacturer:
3M
Mfr.Part #:
951102-7622-AR
Datasheet:
Description:

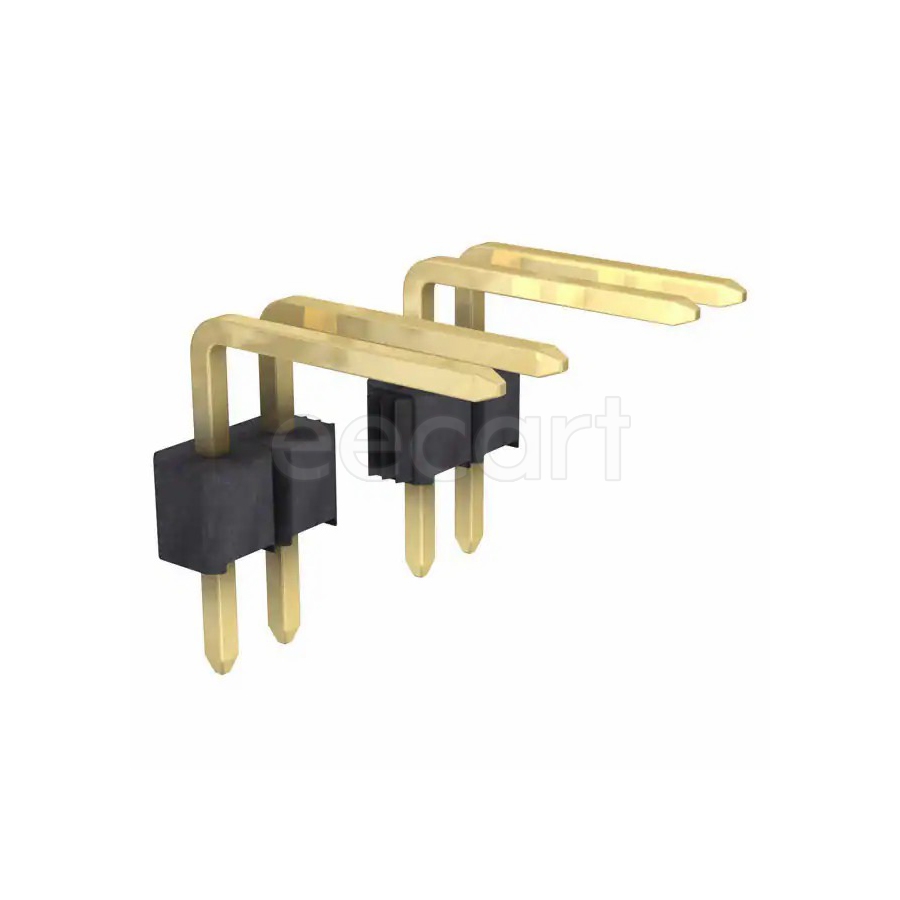

Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 4 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Depth | 7.3 mm |
| RoHS | Compliant |
| Contact Plating | Gold |
| Lead Length | 2.8 mm |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 4.3942 mm |
| Contact Gender | Male |
| Mating Post Length | 4.4 mm |
| Termination Post Length | 2.8 mm |
Stock: 8920
Distributors
pcbx
pcbxUnit Price$0.31928
Ext.Price$0.31928
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31928 | $0.31928 |
| 10 | $0.27342 | $2.73420 |
| 25 | $0.25904 | $6.47600 |
| 50 | $0.24542 | $12.27100 |
| 100 | $0.23251 | $23.25100 |
| 300 | $0.21966 | $65.89800 |
| 500 | $0.20752 | $103.76000 |
| 1000 | $0.19760 | $197.60000 |
| 3000 | $0.18669 | $560.07000 |
| 5000 | $0.17638 | $881.90000 |
| 10000 | $0.16796 | $1679.60000 |
