951103-8622-AR
Manufacturer:
3M
Mfr.Part #:
951103-8622-AR
Datasheet:
Description:

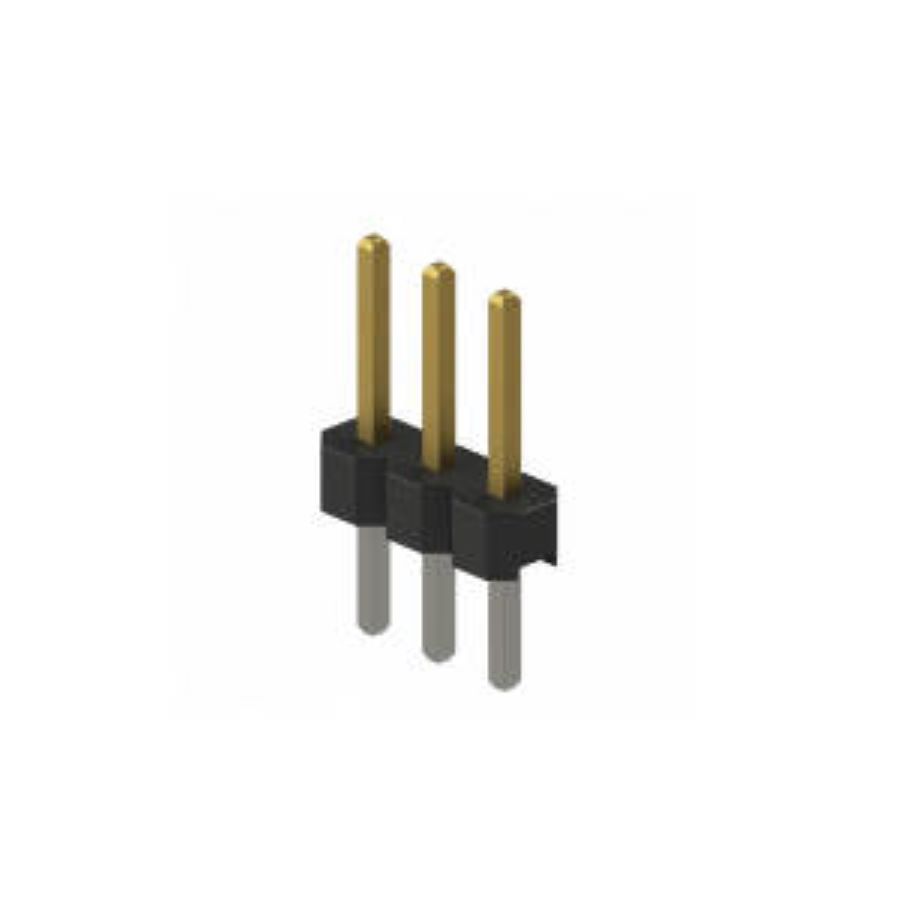

Headers and Wire Housings Through Hole Male Pin Number of Positions:3 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 6 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 6.3 mm |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 2 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Lead Length | 2.8 mm |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 3 |
| Connector Type | Male Pin |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 4.3942 mm |
| Contact Gender | Male |
| Mating Post Length | 4 mm |
| Termination Post Length | 3 mm |
Stock: 2394
Distributors
pcbx
pcbxUnit Price$0.33819
Ext.Price$0.33819
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33819 | $0.33819 |
| 10 | $0.28909 | $2.89090 |
| 25 | $0.27377 | $6.84425 |
| 50 | $0.25926 | $12.96300 |
| 100 | $0.24553 | $24.55300 |
| 300 | $0.23194 | $69.58200 |
| 500 | $0.21911 | $109.55500 |
| 1000 | $0.20865 | $208.65000 |
| 3000 | $0.19713 | $591.39000 |
| 5000 | $0.18625 | $931.25000 |
| 10000 | $0.17736 | $1773.60000 |
