951104-8622-AR
Manufacturer:
3M
Mfr.Part #:
951104-8622-AR
Datasheet:
Description:

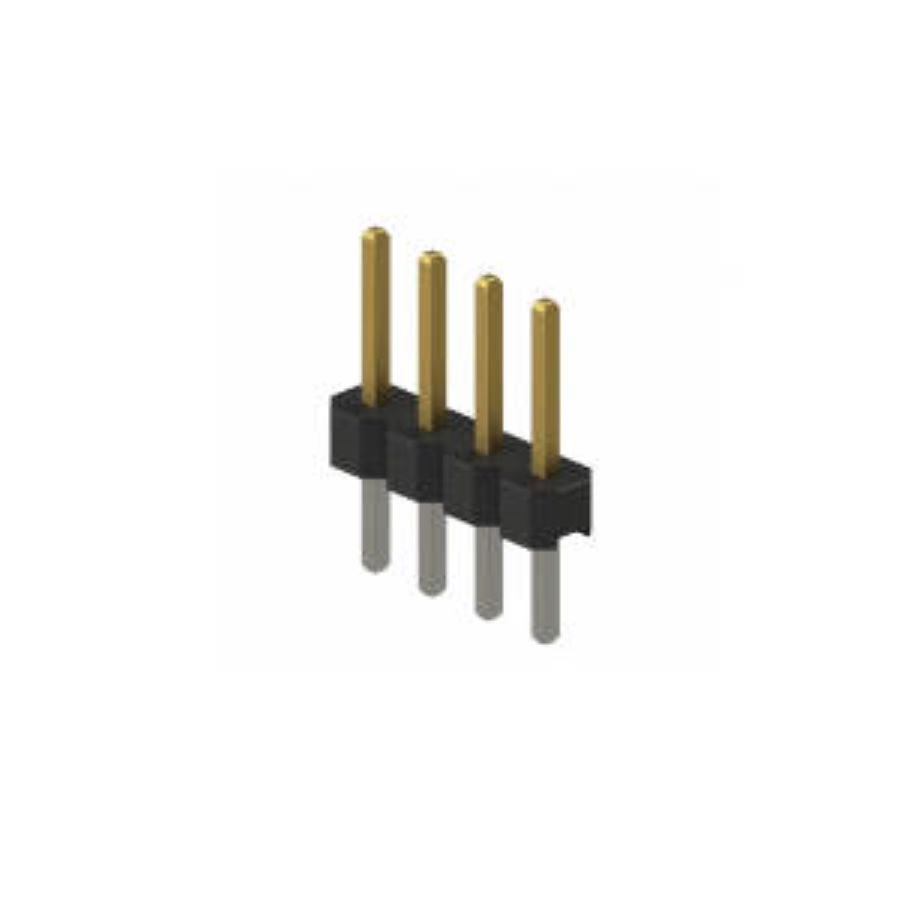

Headers and Wire Housings Through Hole Male Pin Number of Positions:4 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 8 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Depth | 2 mm |
| RoHS | Compliant |
| Weight | 589.670081 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Male Pin |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing | 2 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 4.3942 mm |
| Contact Gender | Male |
| Mating Post Length | 4 mm |
| Schedule B | 8536694040 |
| Termination Post Length | 3 mm |
Stock: 466
Distributors
pcbx
pcbxUnit Price$0.38812
Ext.Price$0.38812
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38812 | $0.38812 |
| 10 | $0.33160 | $3.31600 |
| 25 | $0.31398 | $7.84950 |
| 50 | $0.29730 | $14.86500 |
| 100 | $0.28150 | $28.15000 |
| 300 | $0.26595 | $79.78500 |
| 500 | $0.25126 | $125.63000 |
| 1000 | $0.23925 | $239.25000 |
| 3000 | $0.22605 | $678.15000 |
| 5000 | $0.21357 | $1067.85000 |
| 10000 | $0.20338 | $2033.80000 |
