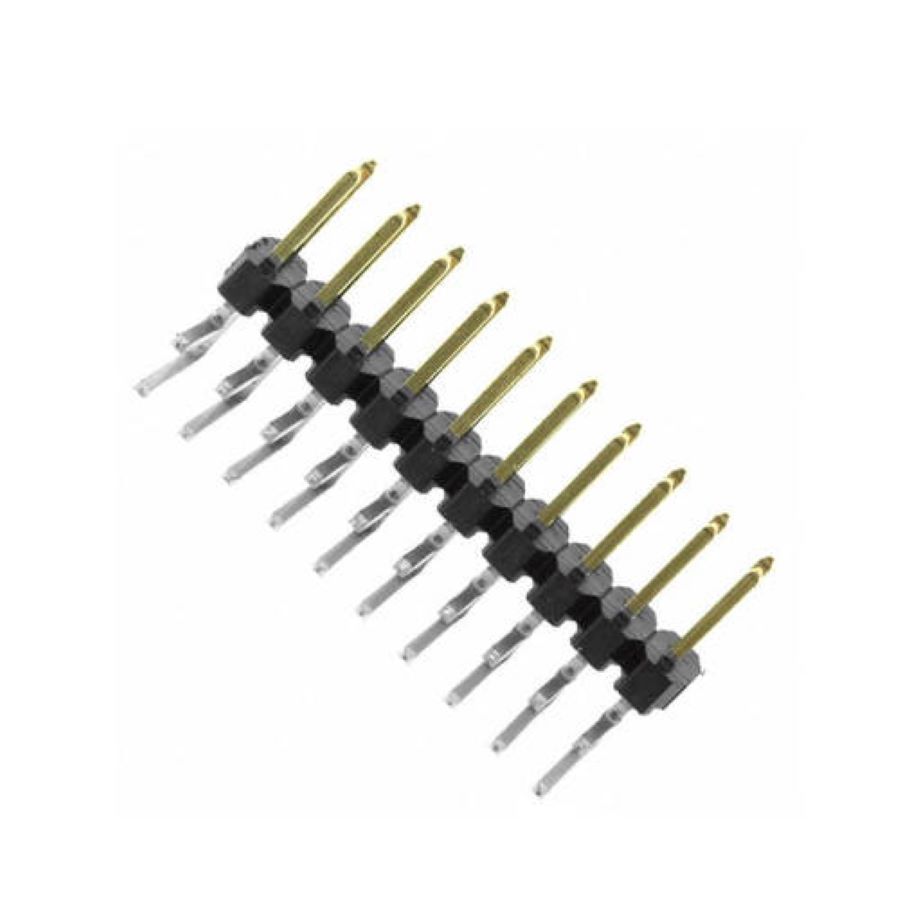

951220-7622-AR
Manufacturer:
3M
Mfr.Part #:
951220-7622-AR
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:20 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 9.3 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Lead Length | 2.8 mm |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 20 |
| Connector Type | Male Pin |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 4.3942 mm |
| Contact Gender | Male |
| Mating Post Length | 4.4 mm |
| Termination Post Length | 2.8 mm |
Stock: 426
Distributors
pcbx
pcbxUnit Price$1.56460
Ext.Price$1.56460
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.56460 | $1.56460 |
| 10 | $1.33021 | $13.30210 |
| 25 | $1.26005 | $31.50125 |
| 50 | $1.19359 | $59.67950 |
| 100 | $1.13063 | $113.06300 |
| 300 | $1.06820 | $320.46000 |
| 500 | $1.00922 | $504.61000 |
| 1000 | $0.96106 | $961.06000 |
| 3000 | $0.90806 | $2724.18000 |
| 5000 | $0.85798 | $4289.90000 |
