95157-140LF
Manufacturer:
Amphenol
Mfr.Part #:
95157-140LF
Datasheet:
Description:

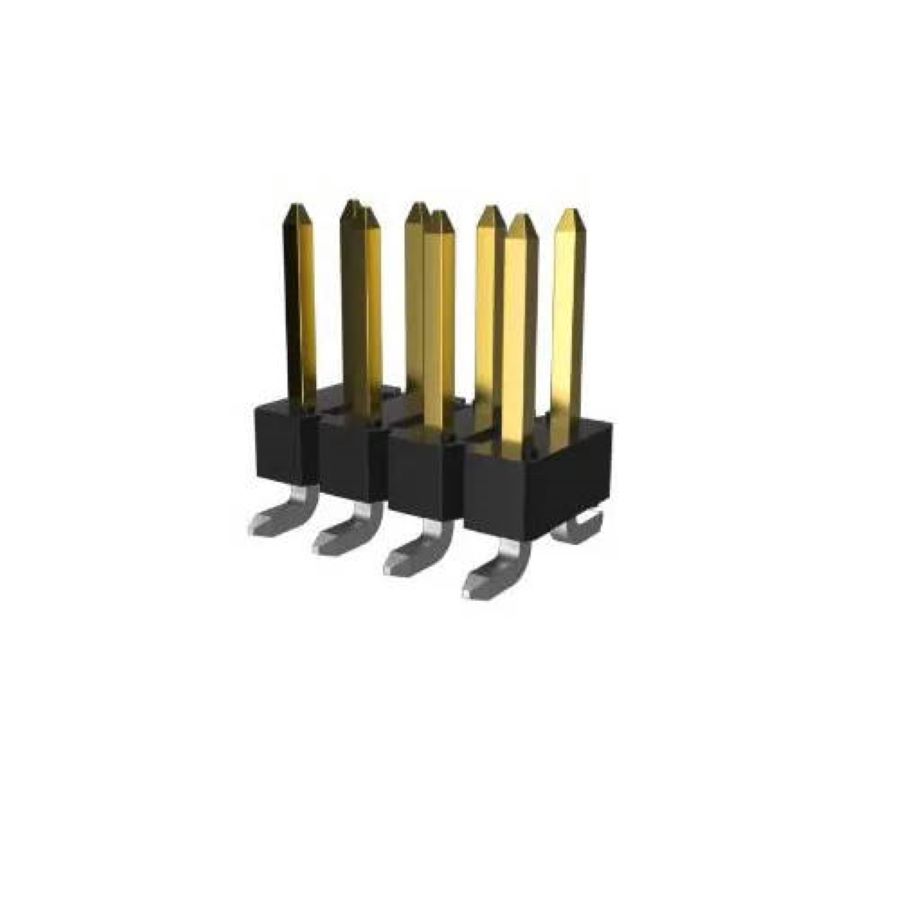

Headers and Wire Housings SMD/SMT Male Pin Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 50.8 mm |
| Width | 4.83 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 4.7 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 40 |
| Connector Type | Male Pin |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Number of Positions Per Level | |
| Number of Levels | |
| Max Voltage Rating (AC) | 1500 V (1.5kV) |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Tail Length | |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 4.7 mm |
Stock: 197
Distributors
pcbx
pcbxUnit Price$1.93983
Ext.Price$1.93983
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.93983 | $1.93983 |
| 10 | $1.65173 | $16.51730 |
| 25 | $1.56525 | $39.13125 |
| 50 | $1.48330 | $74.16500 |
| 100 | $1.32087 | $132.08700 |
| 300 | $1.25646 | $376.93800 |
| 500 | $1.19519 | $597.59500 |
| 1000 | $1.17040 | $1170.40000 |
