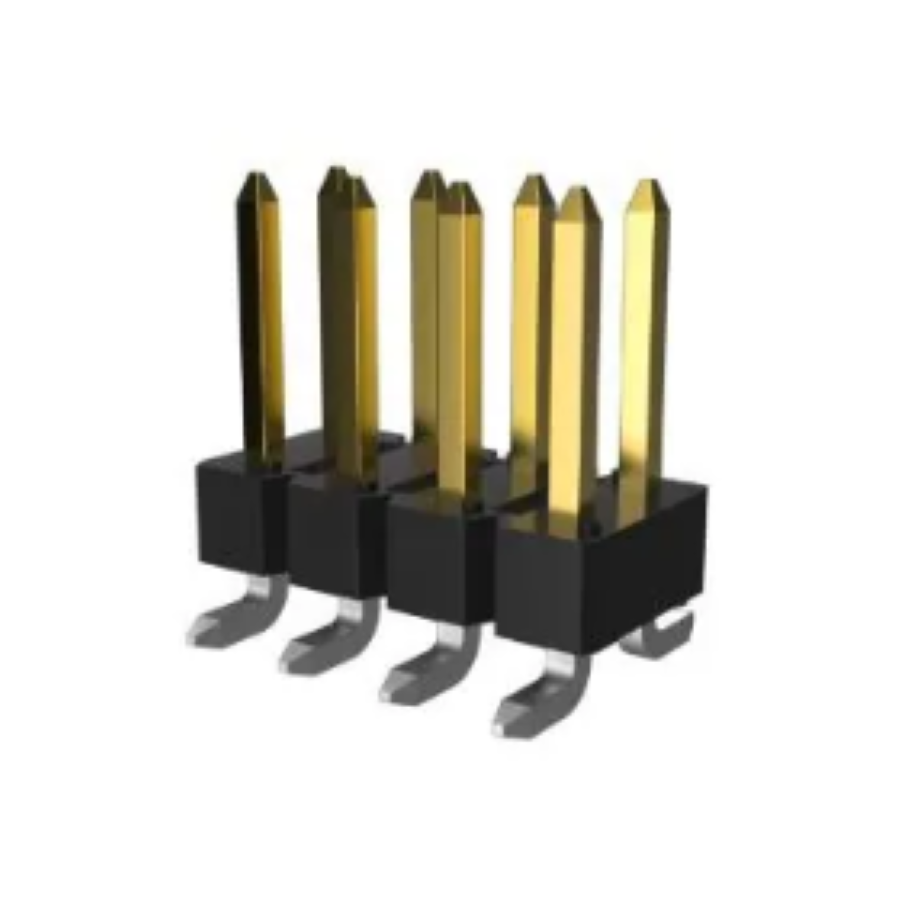

95278-101A08LF
Manufacturer:
Amphenol
Mfr.Part #:
95278-101A08LF
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.16 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 8 |
| Connector Type | Male Pin |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.8928 mm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Packaging | Reel |
Stock: 844
Distributors
pcbx
pcbxUnit Price$0.82586
Ext.Price$0.82586
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.82586 | $0.82586 |
| 10 | $0.70703 | $7.07030 |
| 25 | $0.66849 | $16.71225 |
| 50 | $0.63205 | $31.60250 |
| 100 | $0.59760 | $59.76000 |
| 300 | $0.53091 | $159.27300 |
| 500 | $0.49964 | $249.82000 |
| 1000 | $0.47021 | $470.21000 |
