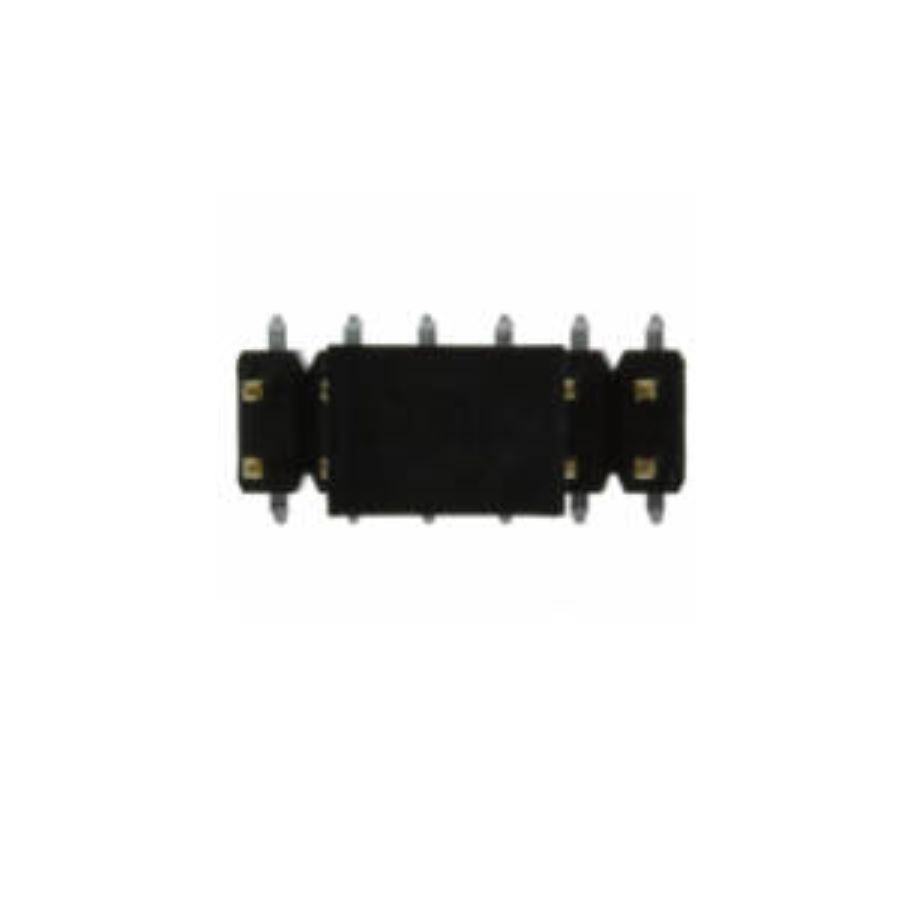

95278-101A12LF
Manufacturer:
Amphenol
Mfr.Part #:
95278-101A12LF
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:12 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.24 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Reel |
| Voltage Rating | 1500 V (1.5 kV) |
| Depth | 4.83 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 12 |
| Connector Type | Header |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 1.5 kV |
| Housing Color | Black |
| Contact Mating Length | 5.8928 mm |
| Contact Gender | Male |
| Mating Post Length | 5.9 mm |
Stock: 549
Distributors
pcbx
pcbxUnit Price$0.98640
Ext.Price$0.98640
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.98640 | $0.98640 |
| 10 | $0.81370 | $8.13700 |
| 25 | $0.74800 | $18.70000 |
| 50 | $0.68760 | $34.38000 |
| 100 | $0.63208 | $63.20800 |
| 300 | $0.58103 | $174.30900 |
| 500 | $0.50974 | $254.87000 |
