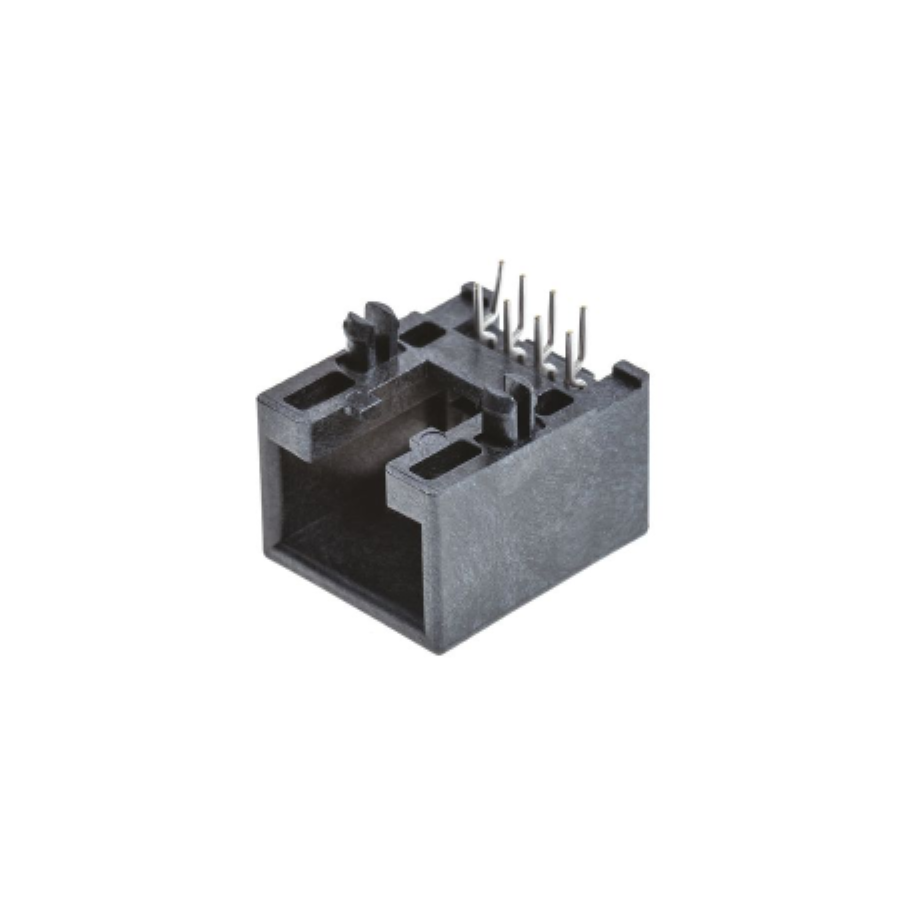

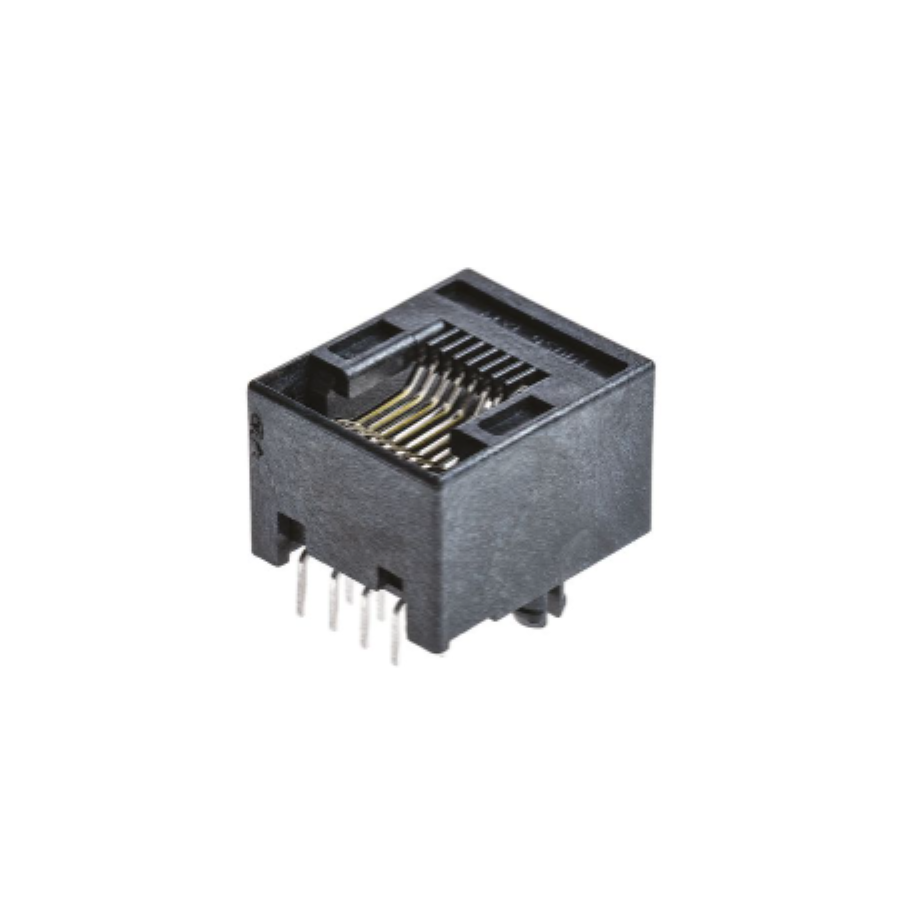

95501-2881
Manufacturer:
Molex
Mfr.Part #:
95501-2881
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ45 Female Current Rating:1.5 A Voltage Rating:125 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 15.24 mm |
| Width | 15.24 mm |
| Termination | Through Hole |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 8 |
| Height | 11.5 mm |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Depth | 18.1 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Number of Terminals | 8 |
| Terminal Pitch | 1.27 mm |
| Current Rating | 1.5 A |
| Max Current Rating | 1.5 A |
| Max Voltage Rating (DC) | 125 V |
| Approvals | UL |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 8 |
| Direction(Counting Sequence) | |
| Connector Type | RJ45 |
| Number of Positions | 8 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Housing Color | Black |
| Plating | Tin |
| Number of Positions Loaded | 8 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | IE |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 14601
Distributors
pcbx
pcbxUnit Price$0.66343
Ext.Price$0.66343
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.66343 | $0.66343 |
| 10 | $0.52664 | $5.26640 |
| 25 | $0.50612 | $12.65300 |
| 50 | $0.48987 | $24.49350 |
| 100 | $0.47534 | $47.53400 |
| 300 | $0.44805 | $134.41500 |
| 500 | $0.42233 | $211.16500 |
| 1000 | $0.39669 | $396.69000 |
