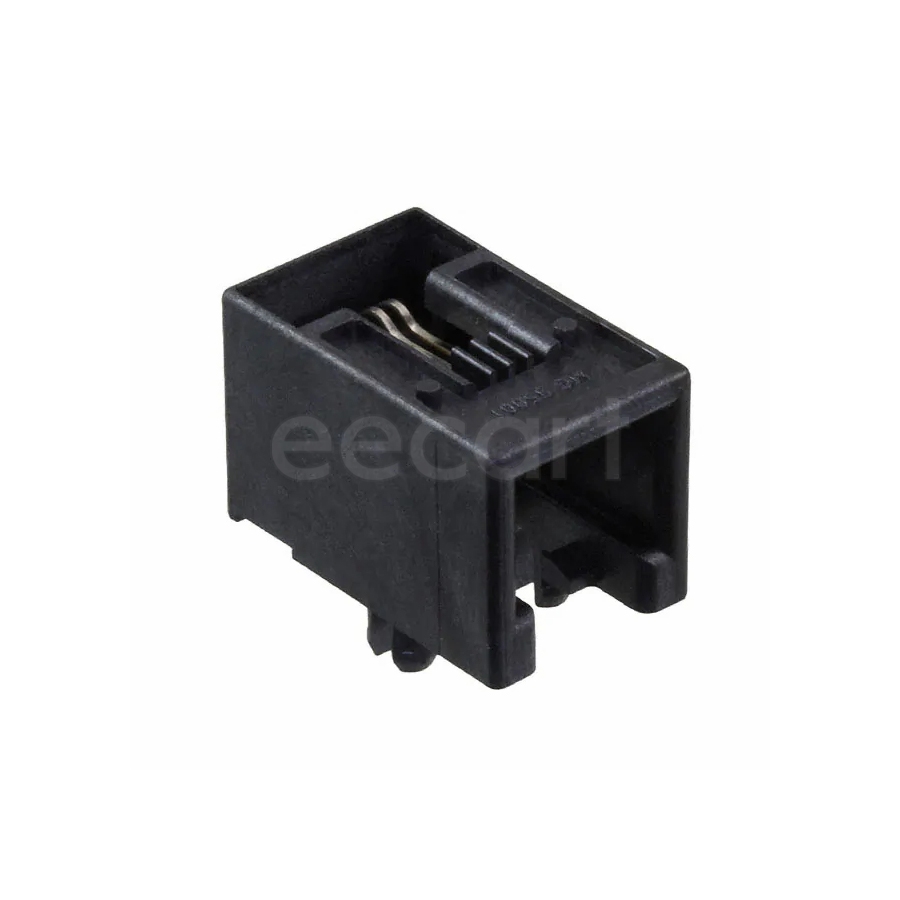

95501-6449
Manufacturer:
Molex
Mfr.Part #:
95501-6449
Datasheet:
Description:
Modular / Ethernet Connectors SMD/SMT RJ11 Female Current Rating:1.5 A Voltage Rating:125 V
| Parameter | Value |
|---|---|
| Length | 18.1 mm |
| Width | 11.18 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 11.65 mm |
| Packaging | Tube |
| Voltage Rating | 125 V |
| Depth | 11.5 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 1.27 mm |
| Current Rating | 1.5 A |
| Max Voltage Rating (DC) | 125 V |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 4 |
| Direction(Counting Sequence) | |
| Number of Positions | 4 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Plating | Tin |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | IE |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ11 |
| Number of Positions/Contacts | 4P4C |
Stock: 2837
Distributors
pcbx
pcbxUnit Price$0.38814
Ext.Price$0.38814
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38814 | $0.38814 |
| 10 | $0.38557 | $3.85570 |
