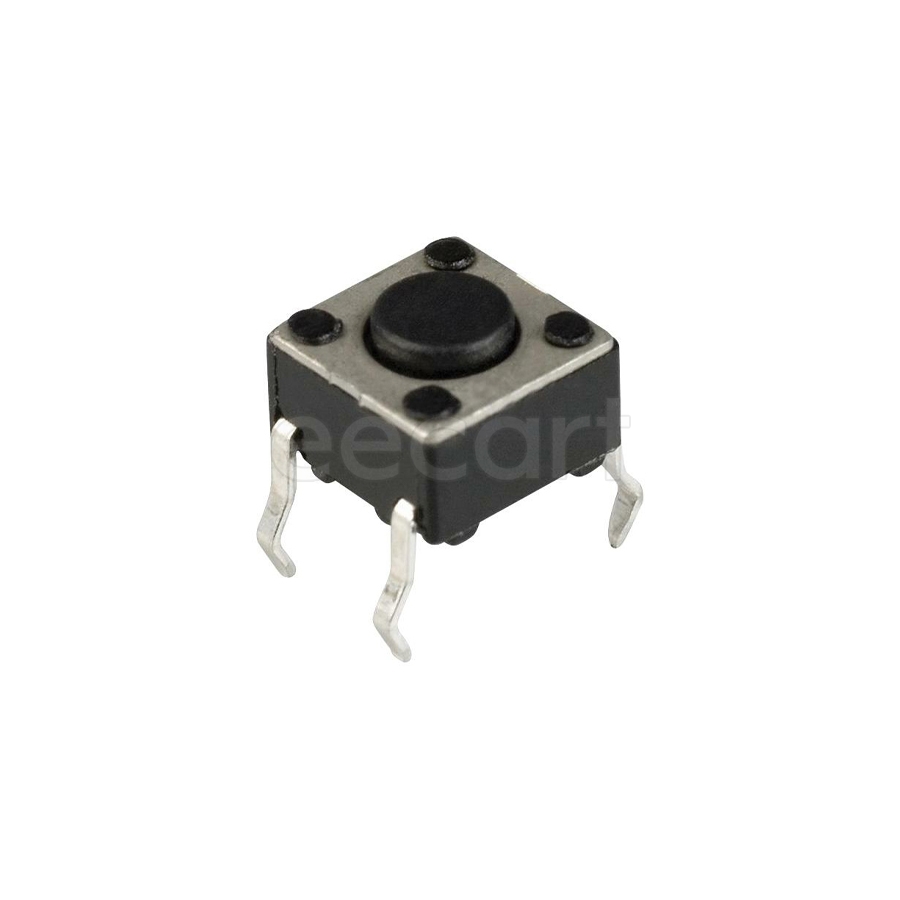

95C06A2T
Manufacturer:
Grayhill
Mfr.Part #:
95C06A2T
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 100 gf Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6.2 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Depth | 6.2 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Brass, Silver, Stainless Steel |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Color | Black |
| Actuator Length | 790 µm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 1 Mcycles |
| Operating Force | 100 gf |
| Switch Travel | 250 µm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 1 Mcycles |
| Actuator Type | Standard |
| Mounting Direction | Straight |
Stock: 1201
Distributors
pcbx
pcbxUnit Price$0.26930
Ext.Price$0.26930
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26930 | $0.26930 |
| 10 | $0.25563 | $2.55630 |
| 25 | $0.24622 | $6.15550 |
| 50 | $0.22940 | $11.47000 |
| 100 | $0.21373 | $21.37300 |
| 300 | $0.20937 | $62.81100 |
| 500 | $0.20510 | $102.55000 |
| 1000 | $0.20091 | $200.91000 |
| 3000 | $0.17584 | $527.52000 |
| 5000 | $0.15389 | $769.45000 |
