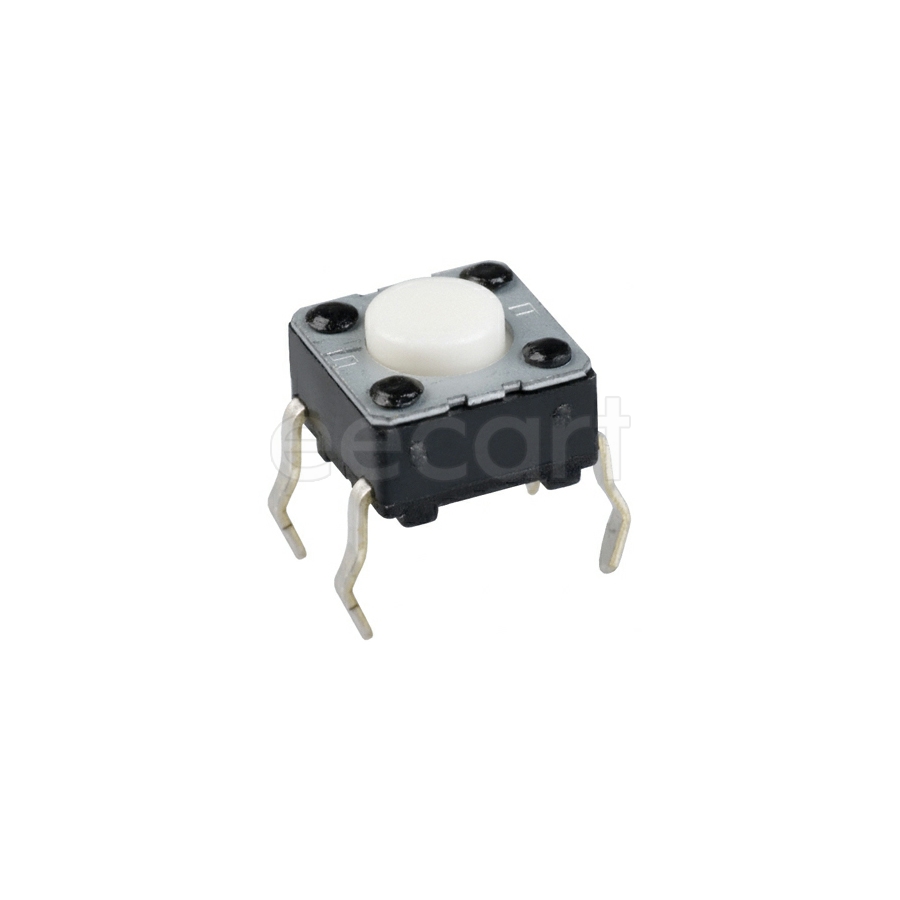

95C06D4RAT
Manufacturer:
Grayhill
Mfr.Part #:
95C06D4RAT
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 260 gf Right Angle
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 8.5 mm |
| Termination | PC Pins |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Depth | 11.21 mm |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Stainless Steel |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Right Angle |
| Color | Red |
| Actuator Length | 8.35 mm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 500 kcycles |
| Operating Force | 260 gf |
| Switch Travel | 250 µm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 500 kcycles |
| Actuator Type | Standard |
| Mounting Direction | Right Angle |
Stock: 617
Distributors
pcbx
pcbxUnit Price$0.44456
Ext.Price$0.44456
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.44456 | $0.44456 |
| 10 | $0.42661 | $4.26610 |
| 25 | $0.39925 | $9.98125 |
| 50 | $0.37226 | $18.61300 |
| 100 | $0.34710 | $34.71000 |
| 300 | $0.32776 | $98.32800 |
| 500 | $0.30949 | $154.74500 |
| 1000 | $0.25819 | $258.19000 |
| 3000 | $0.24231 | $726.93000 |
| 5000 | $0.22741 | $1137.05000 |
