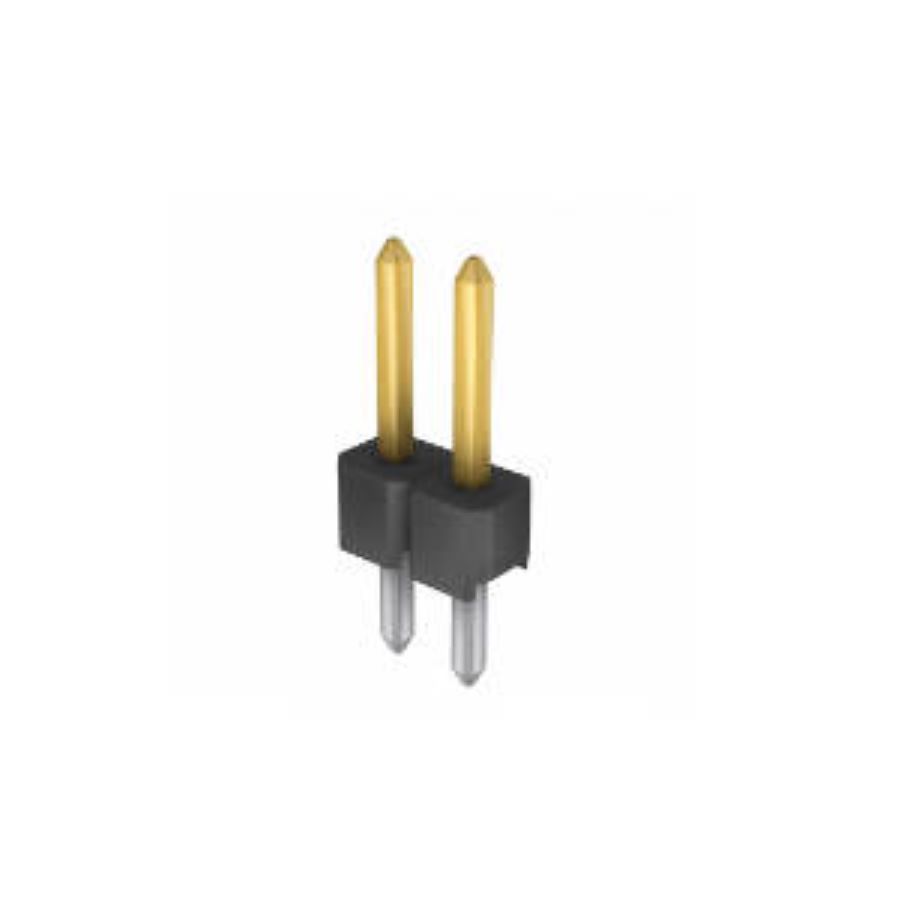

961102-6404-AR
Manufacturer:
3M
Mfr.Part #:
961102-6404-AR
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 2 |
| Packaging | Bulk |
| Depth | 2.5 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Lead Length | 3.3 mm |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Housing Color | Black |
| Contact Mating Length | 5.588 mm |
| Contact Gender | Male |
| Mating Post Length | 5.5 mm |
| Termination Post Length | 3.3 mm |
Stock: 11291
Distributors
pcbx
pcbxUnit Price$0.30036
Ext.Price$0.30036
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30036 | $0.30036 |
| 10 | $0.25406 | $2.54060 |
| 25 | $0.24056 | $6.01400 |
| 50 | $0.22778 | $11.38900 |
| 100 | $0.21568 | $21.56800 |
| 300 | $0.20377 | $61.13100 |
| 500 | $0.19252 | $96.26000 |
| 1000 | $0.18331 | $183.31000 |
| 3000 | $0.17319 | $519.57000 |
| 5000 | $0.16363 | $818.15000 |
| 10000 | $0.15582 | $1558.20000 |
