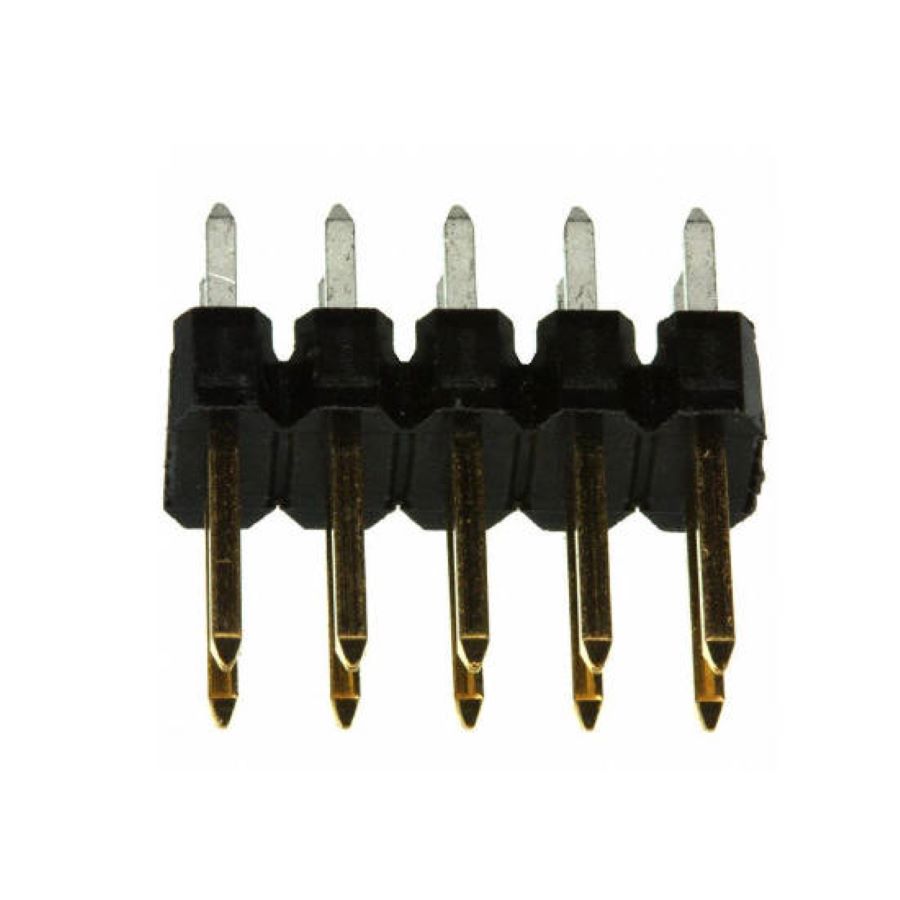

961210-6404-AR
Manufacturer:
3M
Mfr.Part #:
961210-6404-AR
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Depth | 5 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2.54 mm |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Housing Color | Black |
| Contact Mating Length | 5.588 mm |
| Contact Gender | Male |
| Mating Post Length | 5.5 mm |
| Termination Post Length | 3.3 mm |
Stock: 927
Distributors
pcbx
pcbxUnit Price$0.71950
Ext.Price$0.71950
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71950 | $0.71950 |
| 10 | $0.61131 | $6.11310 |
| 25 | $0.57895 | $14.47375 |
| 50 | $0.54830 | $27.41500 |
| 100 | $0.51927 | $51.92700 |
| 300 | $0.49056 | $147.16800 |
| 500 | $0.46344 | $231.72000 |
| 1000 | $0.44131 | $441.31000 |
| 3000 | $0.41696 | $1250.88000 |
| 5000 | $0.39396 | $1969.80000 |
| 10000 | $0.37517 | $3751.70000 |
