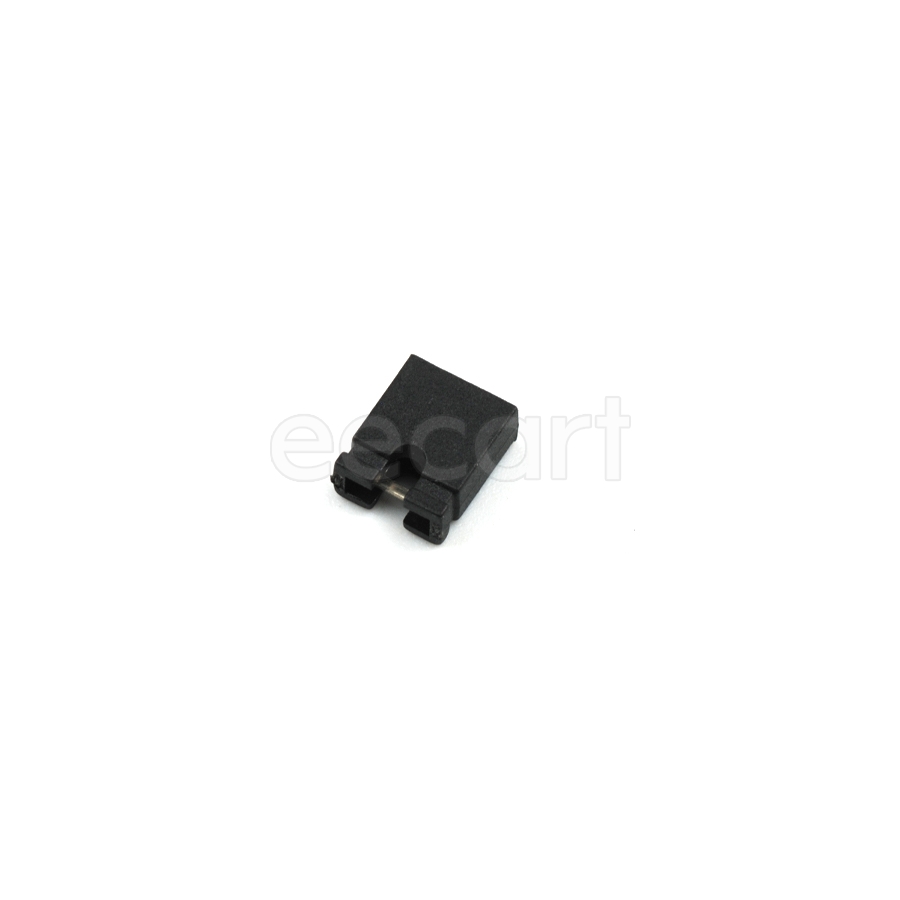

969102-0000-DA
Manufacturer:
3M
Mfr.Part #:
969102-0000-DA
Datasheet:
Description:
Headers and Wire Housings Through Hole Open Top Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Height | 5.9944 mm |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 2.4 mm |
| Lead Free | |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2.54 mm |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Orientation | Straight |
| Color | Black |
| Gender | Female Sockets |
| Number of Contacts | 2 |
| Connector Type | Open Top |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Positions Per Level | |
| Number of Levels | |
| Housing Color | Black |
| Tail Length |
