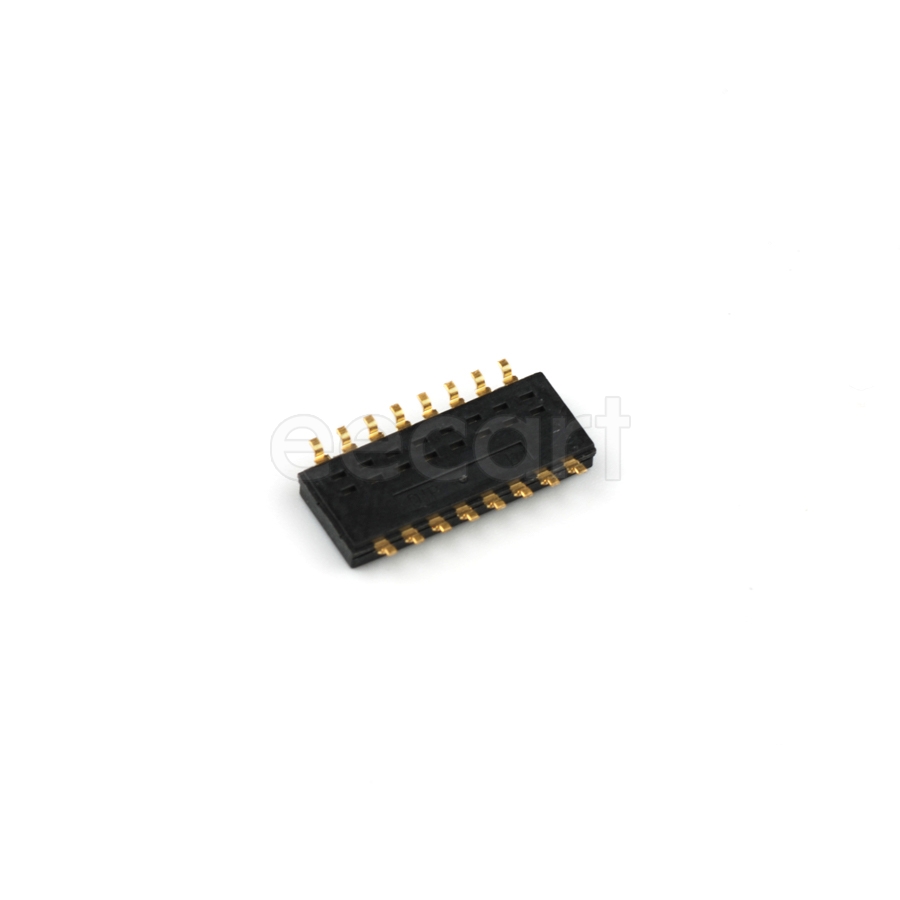

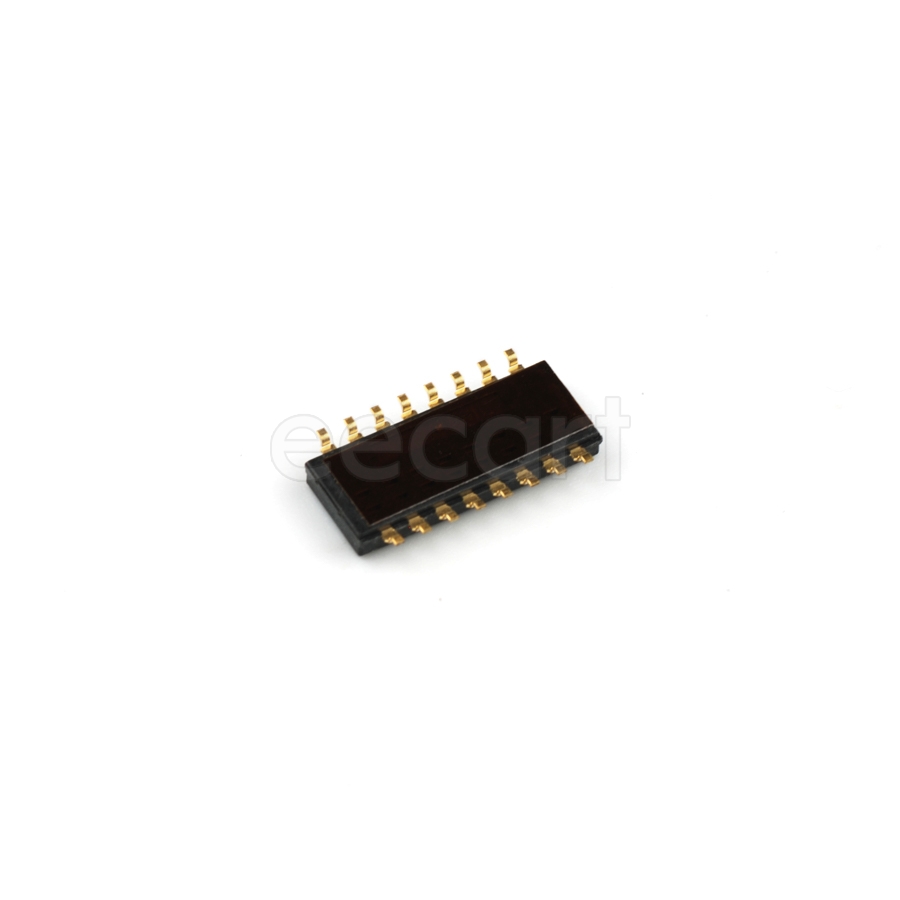

97C08ST
Manufacturer:
Grayhill
Mfr.Part #:
97C08ST
Datasheet:
Description:
DIP Switches SMD/SMT SPST Number of Positions:8 Current Rating:25 mA Slide (Standard)
| Parameter | Value |
|---|---|
| Capacitance | 5 pF |
| Voltage Rating (DC) | 24 V |
| Length | 11.3792 mm |
| Width | 10.92 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Circuit Type | SPST |
| Material | Nylon, Thermoplastic |
| Packaging | Tube |
| Depth | 6.71 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Lead/Base Style | Gull Wing |
| Pitch | 1.27 mm |
| Terminal Pitch | 1.27 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Number of Circuits | 8 |
| Orientation | Straight |
| Body Material | Nylon, Polyamide |
| Actuator Length | 0 m |
| Number of Poles | 1 |
| Throw Configuration | SPST |
| Number of Positions | 8 |
| Contact Resistance | 100 mΩ |
| Actuator Material | Nylon, Thermoplastic |
| Mechanical Life | 1 kcycles |
| Actuator Type | Slide (Standard) |
| Washable | Yes |
Stock: 2157
Distributors
pcbx
pcbxUnit Price$1.99626
Ext.Price$1.99626
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.99626 | $1.99626 |
| 10 | $1.80817 | $18.08170 |
| 25 | $1.48330 | $37.08250 |
| 50 | $1.44646 | $72.32300 |
| 100 | $1.41053 | $141.05300 |
| 300 | $1.37550 | $412.65000 |
| 500 | $1.34134 | $670.67000 |
| 1000 | $1.30804 | $1308.04000 |
| 3000 | $1.19689 | $3590.67000 |
| 5000 | $1.09517 | $5475.85000 |
