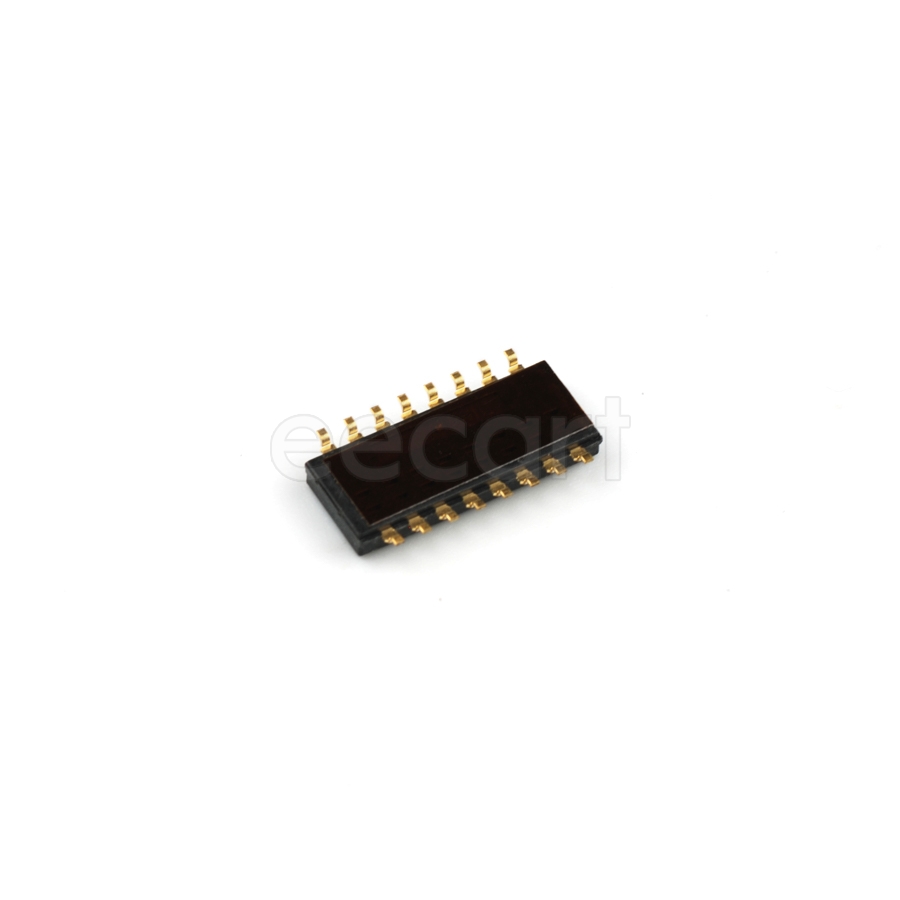

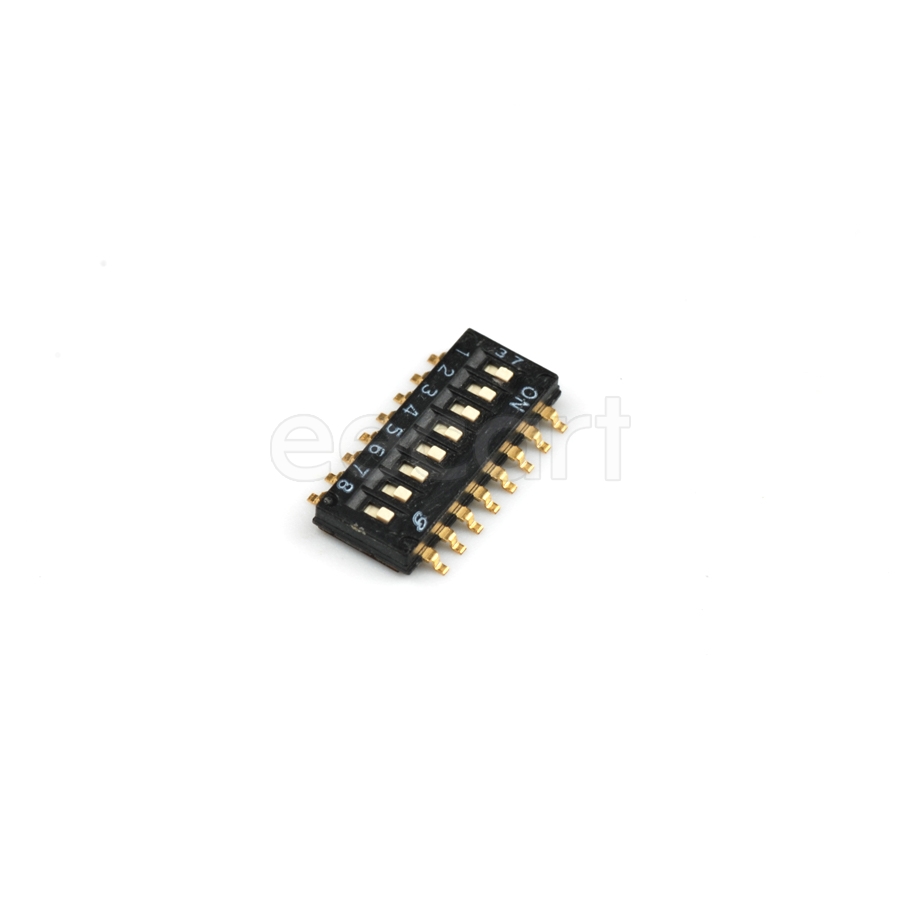

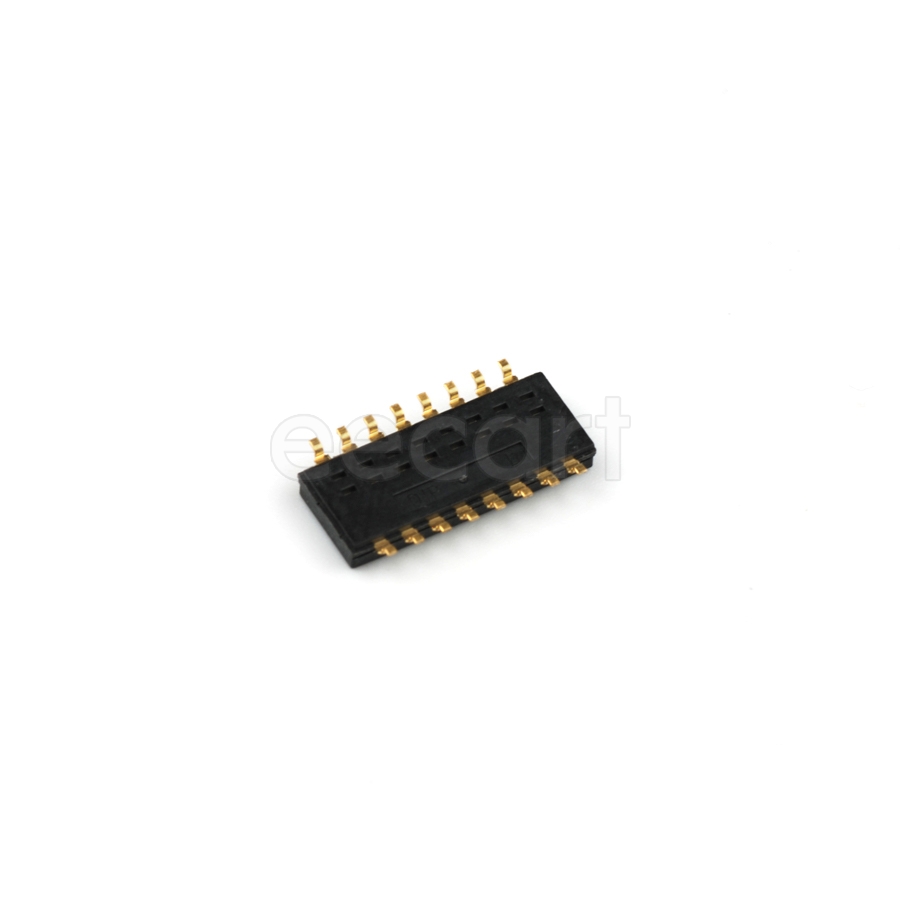

97C10ST
Manufacturer:
Grayhill
Mfr.Part #:
97C10ST
Datasheet:
Description:
DIP Switches SMD/SMT SPST Number of Positions:10 Current Rating:25 mA Slide (Standard)
| Parameter | Value |
|---|---|
| Capacitance | 5 pF |
| Voltage Rating (DC) | 24 V |
| Length | 13.9192 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Circuit Type | SPST |
| Material | Nylon, Thermoplastic |
| Packaging | Tube |
| Depth | 6.71 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Lead/Base Style | Gull Wing |
| Pitch | 1.27 mm |
| Terminal Pitch | 1.27 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Body Material | Nylon, Polyamide |
| Actuator Length | 0 m |
| Number of Poles | 1 |
| Throw Configuration | SPST |
| Number of Positions | 10 |
| Contact Resistance | 100 mΩ |
| Actuator Material | Nylon, Thermoplastic |
| Mechanical Life | 1 kcycles |
| Actuator Type | Slide (Standard) |
| Washable | Yes |
Stock: 779
Distributors
pcbx
pcbxUnit Price$3.74203
Ext.Price$3.74203
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.74203 | $3.74203 |
| 10 | $3.03500 | $30.35000 |
| 25 | $2.57248 | $64.31200 |
| 50 | $2.46392 | $123.19600 |
| 100 | $2.35994 | $235.99400 |
| 300 | $2.26035 | $678.10500 |
| 500 | $2.16496 | $1082.48000 |
| 1000 | $2.07360 | $2073.60000 |
| 3000 | $1.98609 | $5958.27000 |
| 5000 | $1.90222 | $9511.10000 |
