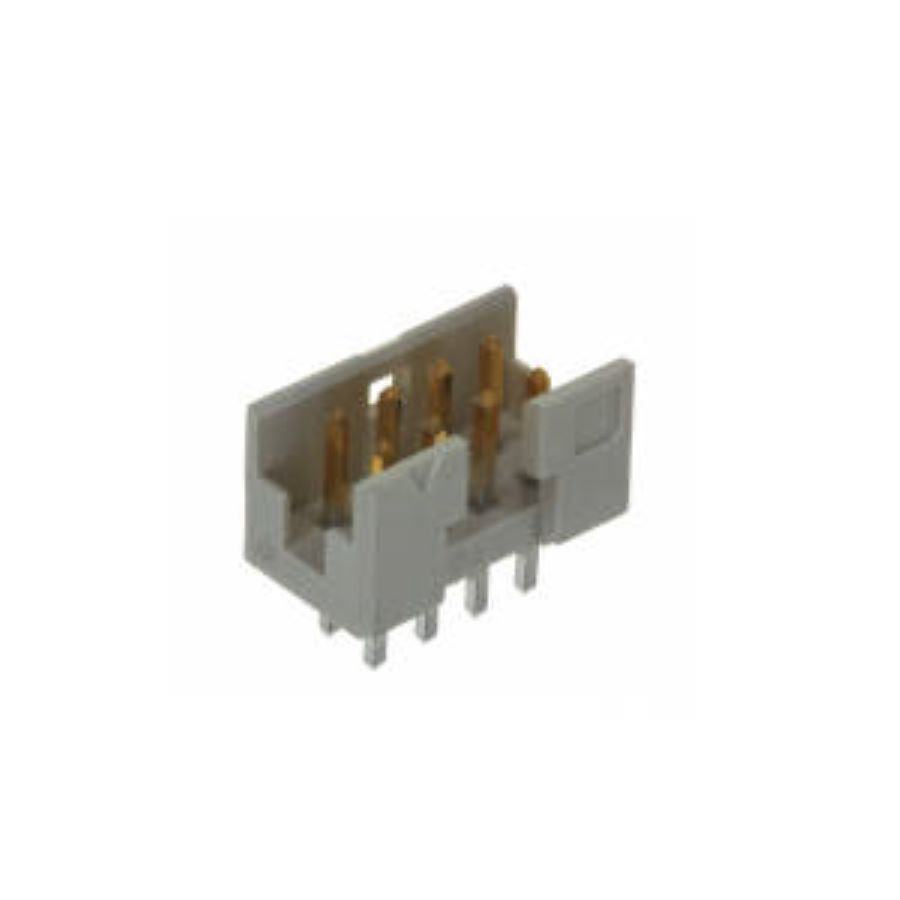

98414-G06-08ULF
Manufacturer:
Amphenol
Mfr.Part #:
98414-G06-08ULF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:8 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| Depth | 6.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.5 mm |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Orientation | Straight |
| Color | Cream |
| Gender | Male |
| Number of Contacts | 8 |
| Connector Type | Male Pin |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Thermoplastic |
| Housing Color | Cream |
| Contact Mating Length | 3.9878 mm |
| Contact Gender | Male |
| Mating Post Length | 4 mm |
| Termination Post Length | 2.5 mm |
Stock: 1795
Distributors
pcbx
pcbxUnit Price$0.68167
Ext.Price$0.68167
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68167 | $0.68167 |
| 10 | $0.63849 | $6.38490 |
| 25 | $0.59804 | $14.95100 |
| 50 | $0.56016 | $28.00800 |
| 100 | $0.52468 | $52.46800 |
| 300 | $0.49144 | $147.43200 |
| 500 | $0.46031 | $230.15500 |
| 1000 | $0.43115 | $431.15000 |
| 3000 | $0.40384 | $1211.52000 |
| 5000 | $0.37826 | $1891.30000 |
| 10000 | $0.35428 | $3542.80000 |
