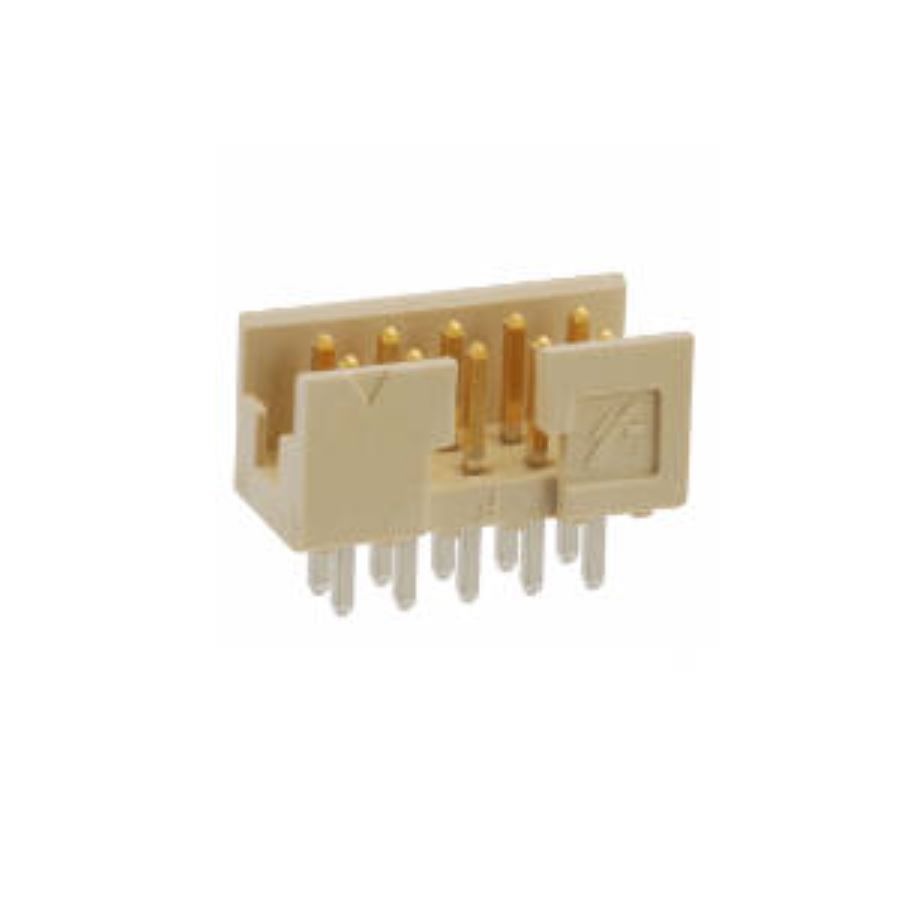

98414-G06-10LF
Manufacturer:
Amphenol
Mfr.Part #:
98414-G06-10LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 12 mm |
| Width | 6.1 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 650 V |
| Depth | 6.1 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.5 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Orientation | Straight |
| Color | Cream |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Thermoplastic |
| Housing Color | Cream |
| Contact Mating Length | 3.9878 mm |
| Contact Gender | Male |
| Mating Post Length | 4 mm |
| Termination Post Length | 2.5 mm |
Stock: 350
Distributors
pcbx
pcbxUnit Price$1.31357
Ext.Price$1.31357
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.31357 | $1.31357 |
| 10 | $1.09114 | $10.91140 |
| 25 | $1.02190 | $25.54750 |
| 50 | $0.95705 | $47.85250 |
| 100 | $0.89632 | $89.63200 |
| 300 | $0.83944 | $251.83200 |
| 500 | $0.79387 | $396.93500 |
| 1000 | $0.75078 | $750.78000 |
