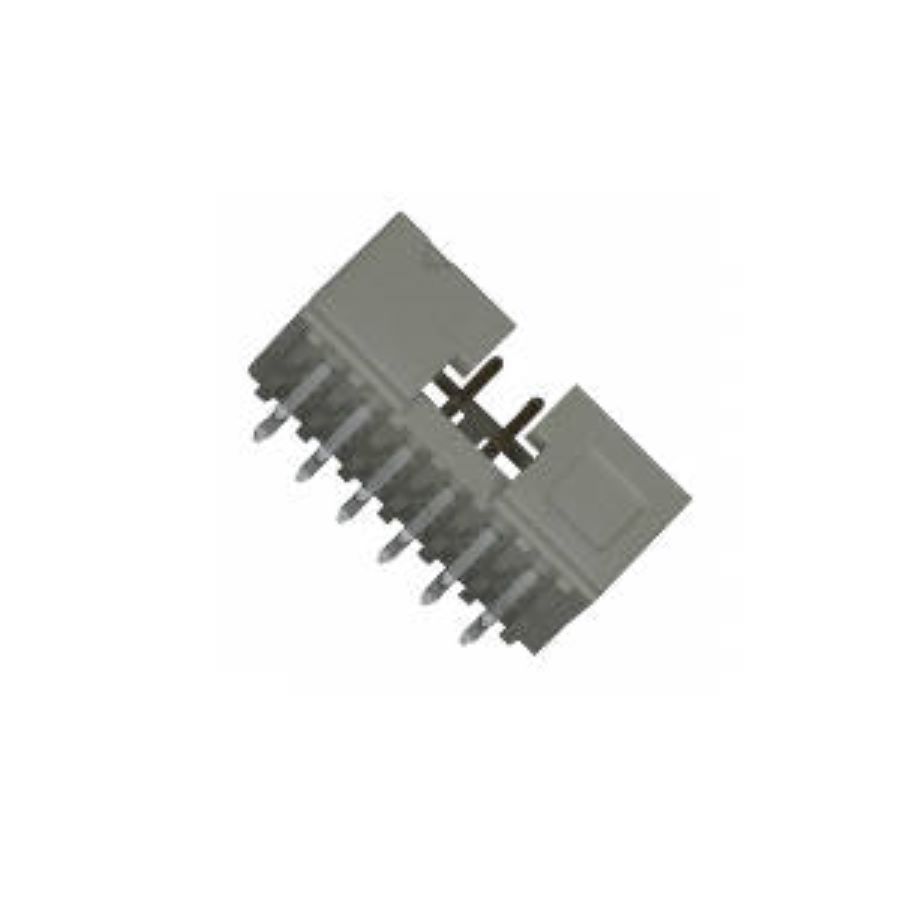

98414-G06-12LF
Manufacturer:
Amphenol
Mfr.Part #:
98414-G06-12LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:12 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 14 mm |
| Width | 6.1 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 6.1 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Gold |
| Lead Length | 2.5 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Orientation | Straight |
| Color | Cream |
| Gender | Male |
| Number of Contacts | 12 |
| Connector Type | Male Pin |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Thermoplastic |
| Housing Color | Cream |
| Contact Mating Length | 3.9878 mm |
| Contact Gender | Male |
| Mating Post Length | 4 mm |
| Schedule B | 8536694040 |
| Termination Post Length | 2.5 mm |
Stock: 1754
Distributors
pcbx
pcbxUnit Price$0.69506
Ext.Price$0.69506
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.69506 | $0.69506 |
| 10 | $0.68211 | $6.82110 |
| 25 | $0.66941 | $16.73525 |
| 50 | $0.66340 | $33.17000 |
| 100 | $0.65744 | $65.74400 |
| 300 | $0.62239 | $186.71700 |
| 500 | $0.61299 | $306.49500 |
